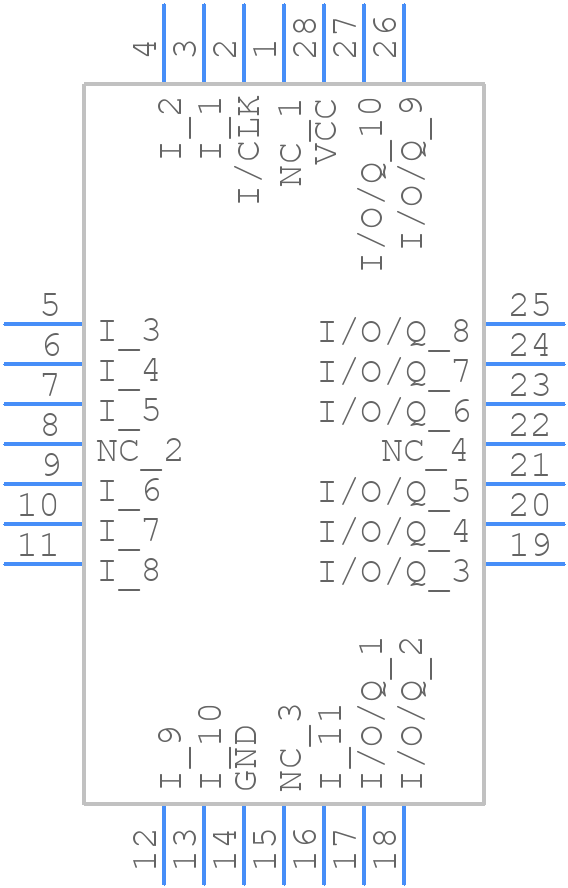

GAL22V10D-25QJ - Lattice Semiconductor

GAL22V10D-25QJ Details

• Manufacturer Part Number:

  GAL22V10D-25QJ

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QLCC

• Package Description:

  PLASTIC, LCC-28

• Pin Count:

  28

• HTS Code:

  8542.31.00.55

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  0

• Additional Feature:

  10 MACROCELLS; SHARED INPUT/CLOCK

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  33.3 MHz

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e0

• Length:

  11.5062 mm

• Moisture Sensitivity Level:

  1

• Number of Dedicated Inputs:

  11

• Number of I/O Lines:

  10

• Number of Inputs:

  22

• Number of Outputs:

  10

• Number of Product Terms:

  132

• Number of Terminals:

  28

• Operating Temperature-Max:

  75 °C

• Organization:

  11 DEDICATED INPUTS, 10 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.5SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  225

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  25 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.572 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  11.5062 mm
