The recommended PCB layout involves placing the GBPC5008W-G near the edge of the board to facilitate heat dissipation. A thermal pad or heat sink is recommended to maintain a junction temperature below 125°C. A minimum of 2oz copper thickness and a 1-inch square copper pad are recommended for optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for voltage and current. Additionally, consider using a heat sink or thermal pad to maintain a junction temperature below 125°C. Ensure good airflow and avoid exposing the device to extreme temperatures during storage or operation.
The GBPC5008W-G has an ESD rating of Human Body Model (HBM) ≥ 2kV and Machine Model (MM) ≥ 200V. To prevent ESD damage, handle the device with an anti-static wrist strap or mat, and avoid touching the pins or leads. Store the device in an anti-static bag or container when not in use.
Yes, the GBPC5008W-G can be used in switching power supply applications. However, ensure that the device is operated within its recommended voltage and current ratings, and follow proper PCB layout and thermal management guidelines to prevent overheating and ensure reliable operation.
The recommended soldering profile for the GBPC5008W-G involves a peak temperature of 260°C, with a dwell time of 10-30 seconds. Ensure that the soldering process is done in a nitrogen atmosphere to prevent oxidation. Follow the IPC-J-STD-020 standard for soldering and rework.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
GBPC5008W-G Overview

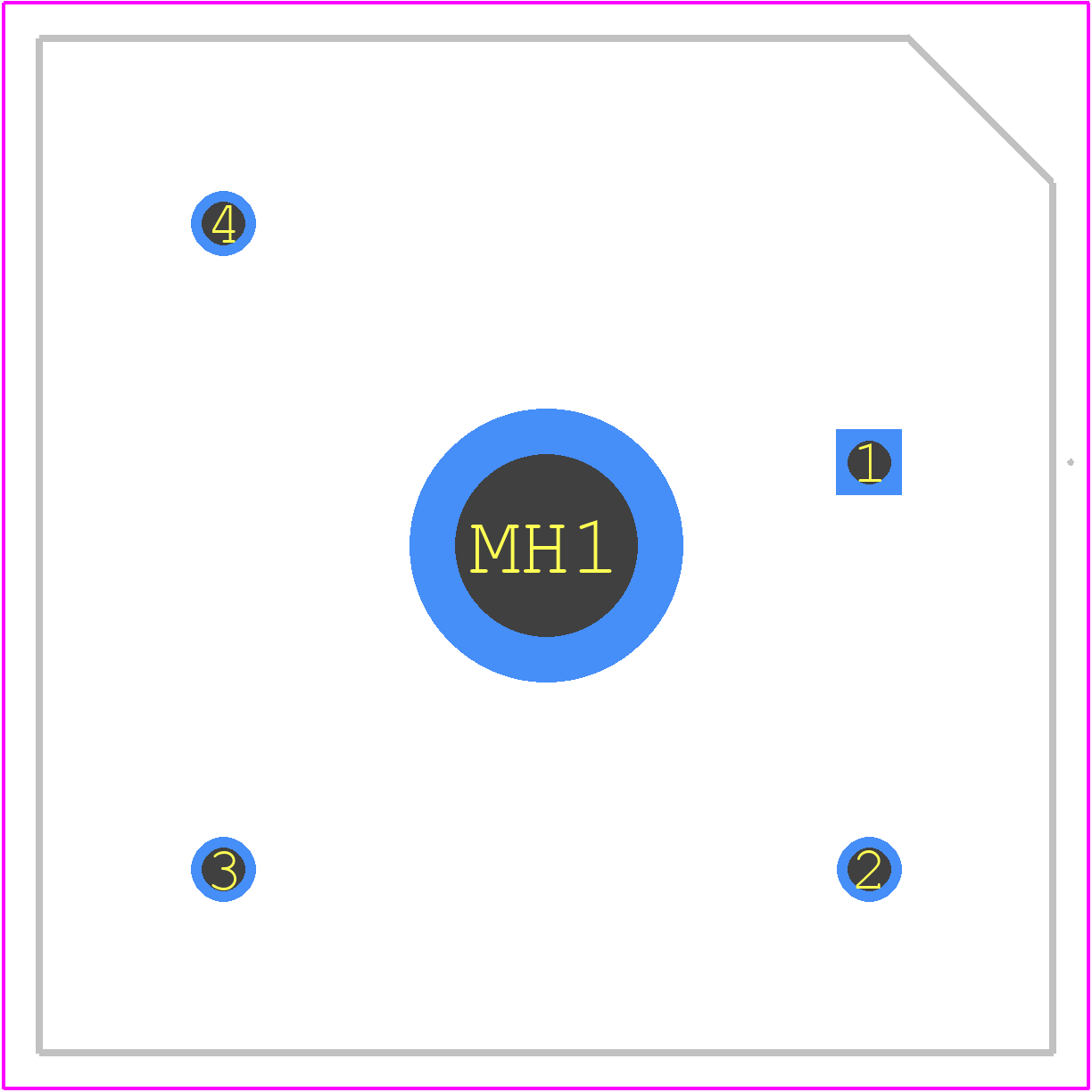

Use the download button to access the GBPC5008W-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GBPC5,
or try a keyword search, such as Bridge Rectifier Diodes
