GS12281-INTE3 - SEMTECH

Description: Video ICs 12G UHD-SDI ReTIMING Cable Driver

Download GS12281-INTE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

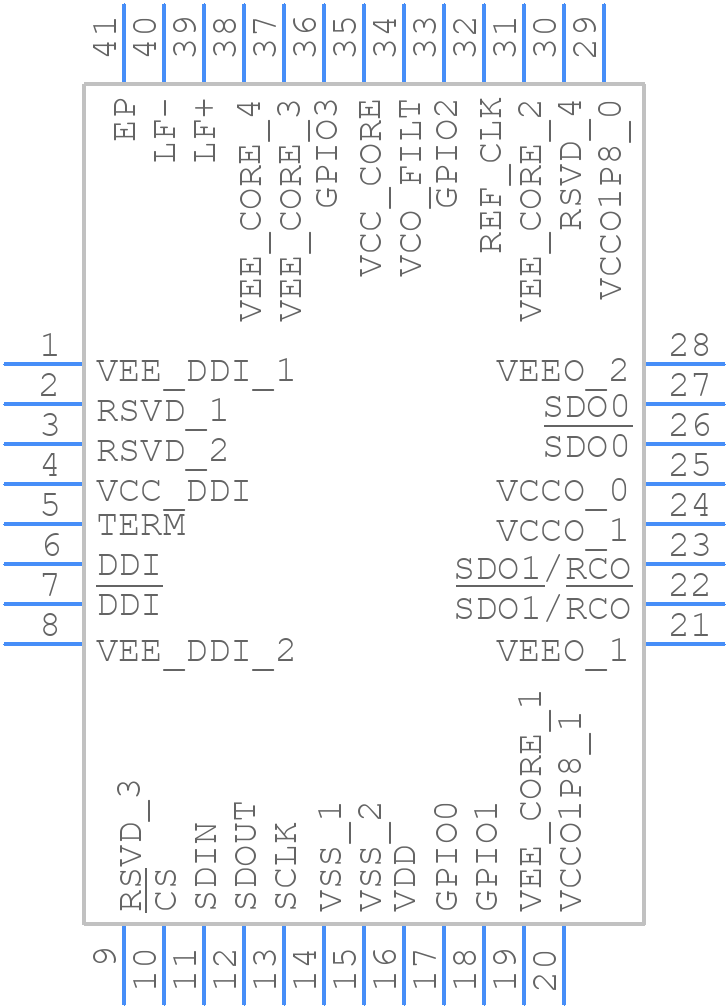

GS12281-INTE3 - SEMTECH - PCB symbol
click to zoom
PCB Footprints
GS12281-INTE3 - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40
click to zoom
3D Models
GS12281-INTE3 - SEMTECH - 3D model - Quad Flat No-Lead - QFN40
click to zoom

GS12281-INTE3 Details

  • Manufacturer Part Number:

    GS12281-INTE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Semtech Corporation

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Finish:

    Palladium/Gold/Silver (Pd/Au/Ag)

GS12281-INTE3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended thermal design guidelines. Also, consider using a heat sink with a thermal conductivity of at least 1 W/m-K.
  • The maximum allowable voltage on the VCC pin is 3.6V. Exceeding this voltage may damage the device.
  • Use a logic analyzer or oscilloscope to monitor the signals, check the power supply voltage, and verify the PCB layout and component placement. Consult the datasheet and application notes for troubleshooting guidelines.
  • No, the GS12281-INTE3 is not designed for radiation-hardened applications. It is intended for commercial use only.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

GS12281-INTE3 Overview

Use the download button to access the GS12281-INTE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like GS122, or try a keyword search, such as Other Telecom ICs
