GV7600-IBE3 - SEMTECH

Description: The GV7600 is a serial digital video transmitter for standard and high definition component video. With integrated cable driving technology, the GV7600 is capable of transmitting digital video at 270Mb/s, 1.485Gb/s and 2.97Gb/s over 75Ω coaxial cable. The device provides a

Download GV7600-IBE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
GV7600-IBE3 - SEMTECH - PCB symbol
click to zoom
PCB Footprints

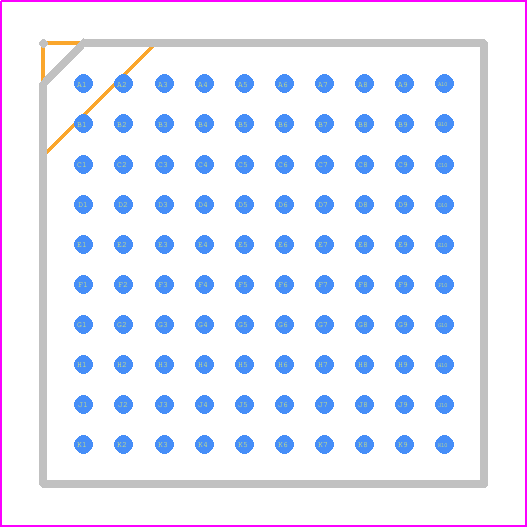

GV7600-IBE3 - SEMTECH PCB footprint - BGA - BGA - 100L LBGA Package Size: 11 x 11 x 1.71 mm_2021
click to zoom
3D Models
GV7600-IBE3 - SEMTECH - 3D model - BGA - 100L LBGA Package Size: 11 x 11 x 1.71 mm_2021
click to zoom

GV7600-IBE3 Details

  • Manufacturer Part Number:

    GV7600-IBE3

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA,

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B100

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

GV7600-IBE3 Frequently Asked Questions (FAQs)

  • The GV7600-IBE3 requires a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink for efficient heat dissipation. A minimum of 2oz copper thickness is recommended for the power planes.
  • Use a pi-network or a T-network topology for input impedance matching. The optimal component values can be determined using simulation tools like ADS or Genesys. A VSWR of 1.5:1 or better is recommended for maximum power transfer.
  • The recommended operating voltage range for the GV7600-IBE3 is 12V to 15V, with a typical voltage of 13.5V. Operating the device outside this range may affect its performance and reliability.
  • Use a combination of visual inspection, signal probing, and debugging tools like oscilloscopes and logic analyzers to identify issues. Check for proper power supply, signal integrity, and thermal management. Consult the datasheet and application notes for troubleshooting guidelines.
  • The GV7600-IBE3 has a maximum junction temperature of 150°C. Ensure a thermal resistance of less than 10°C/W for the heat sink and a maximum ambient temperature of 85°C. Use thermal interface materials and follow the recommended PCB layout for optimal thermal performance.
