H11D1SR2M - onsemi

Description: DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage; H11D1M, BVCEO= 300 V; MOC8204M, BVCEO= 400 V; H11D3M, BVCEO= 200 V; UL1577, 4,170 VACRMS for 1 Minute; High Voltage:; Safety and Regulatory Approvals:

Download H11D1SR2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

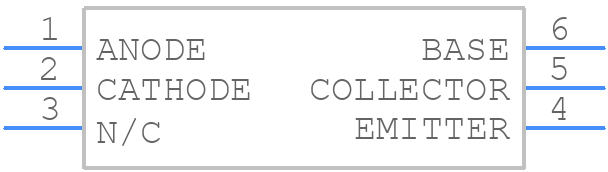

Symbol
H11D1SR2M - onsemi - PCB symbol
click to zoom
PCB Footprints
H11D1SR2M - onsemi PCB footprint - Other - Other - H11D1SR2M-3
click to zoom

H11D1SR2M Details

  • Manufacturer Part Number:

    H11D1SR2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    300 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

H11D1SR2M Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, thermal vias can be used to further improve heat dissipation.
  • Ensure that the device is operated within the recommended temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's current handling capability at high temperatures.
  • A gate drive voltage of 10-15V is recommended for optimal switching performance. However, the device can operate with a gate drive voltage as low as 6V, but with reduced switching performance.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode to clamp voltage transients. Ensure that the device is operated within the recommended voltage and current ratings. Also, consider using a fuse or a current limiter to prevent overcurrent conditions.
  • A dead time of 100-200ns is recommended to prevent shoot-through current and ensure reliable operation. However, the optimal dead time may vary depending on the specific application and switching frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

H11D1SR2M Overview

Use the download button to access the H11D1SR2M schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like H11D1, or try a keyword search, such as Optocoupler
