H11F1SM - onsemi

Description: As a remote variable resistor: ; ≥ 100GΩ I/O isolation resistanceAs an analog switch: ; No charge injection or latch-up; ≤ 100Ω to ≥ 300MΩ; ≤ 15pF shunt capacitance; UL recognized (File #E90700); 60 Vpk-pk signal capability; Extremely low offset voltage

Download H11F1SM Model

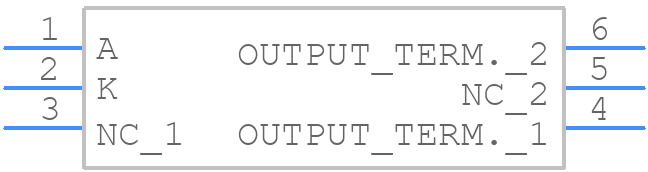

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
H11F1SM - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - PDIP6 8.51x6.35, 2.54P
click to zoom
3D Models
H11F1SM - onsemi  - 3D model - SOT23 (6-Pin) - PDIP6 8.51x6.35, 2.54P
click to zoom

H11F1SM Details

  • Manufacturer Part Number:

    H11F1SM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.75 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    FET OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000025 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

H11F1SM Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the H11F1SM is 4.5V to 5.5V, with a typical operating voltage of 5V.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple the power supply with a 0.1uF capacitor. Additionally, ensure the input signals are within the recommended voltage range.
  • The maximum frequency of operation for the H11F1SM is 100 MHz, but this can vary depending on the specific application and operating conditions.
  • To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high frequencies.
  • For optimal performance, use a symmetrical layout and routing, with minimal trace lengths and impedance mismatches. Avoid running high-frequency signals near the device's power and ground pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

H11F1SM Overview

Use the download button to access the H11F1SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like H11F1, or try a keyword search, such as Optocoupler
