Description:60 Vpk-pk signal capability; ≥ 100GΩ I/O isolation resistanceAs an analog switch: ; As a remote variable resistor: ; ≤ 15pF shunt capacitance; ≤ 100Ω to ≥ 300MΩ; UL recognized (File #E90700); No charge injection or latch-up; Extremely low offset voltage
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's current and voltage ratings according to the datasheet.
The H11F3SM has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
Yes, the H11F3SM is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching characteristics, such as turn-on and turn-off times, and ensure that the application's switching frequency is within the device's recommended operating range.
To troubleshoot issues with the H11F3SM, start by reviewing the application's schematic and PCB layout, checking for any design or layout errors. Then, use a multimeter or oscilloscope to measure the device's voltage and current, and check for any signs of overheating or thermal stress.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
H11F3SM Overview

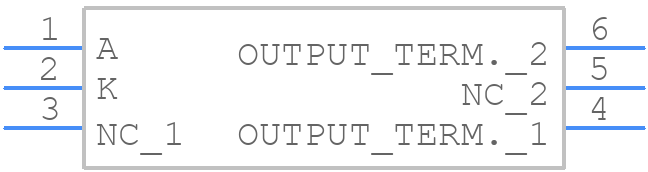

Use the download button to access the H11F3SM schematic symbol and PCB footprint.
