H11G2M - onsemi

Description: 80 V Minimum for H11G2M; DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage; UL1577, 4,170 VACRMS for 1 Minute; 100 V Minimum for H11G1M; Safety and Regulatory Approvals:; High Sensitivity to Low Input Current (Minimum 500% CTR at IF= 1 mA); High BVCEO:; Low Leakage Current at Elevated Temperature (Maximum 100 μA at 80°C)

Download H11G2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

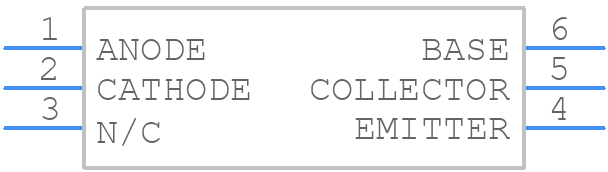

Symbol
H11G2M - onsemi - PCB symbol
click to zoom
PCB Footprints
H11G2M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - H11G2M
click to zoom
3D Models
H11G2M - onsemi - 3D model - Dual-In-Line Packages - H11G2M
click to zoom

H11G2M Details

  • Manufacturer Part Number:

    H11G2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    500%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

H11G2M Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, thermal vias can be used to further improve heat dissipation.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider using a heat sink or thermal interface material to reduce thermal resistance.
  • A gate drive voltage of 10-15V is recommended for optimal switching performance. However, the device can operate with gate drive voltages as low as 6V, but with reduced switching performance.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode to clamp voltage transients. Additionally, ensure that the device is operated within the recommended voltage and current ratings.
  • A dead time of 100-200ns is recommended to ensure that the device is fully turned off before the complementary device is turned on.
