0.400 X 0.875 INCH, 0.65 MM PITCH, ROHS COMPLIANT, TSOP2-66
Pin Count:
66
ECCN Code:
EAR99
HTS Code:
8542.32.00.24
Manufacturer:
SK Hynix Inc
YTEOL:
0
Access Mode:
FOUR BANK PAGE BURST
Access Time-Max:
0.7 ns
Additional Feature:
AUTO/SELF REFRESH
Clock Frequency-Max (fCLK):
200 MHz
I/O Type:
COMMON
Interleaved Burst Length:
2,4,8
JESD-30 Code:
R-PDSO-G66
JESD-609 Code:
e6
Length:
22.225 mm
Memory Density:
268435456 bit
Memory IC Type:
DDR1 DRAM
Memory Width:
16
Number of Functions:
1
Number of Ports:
1
Number of Terminals:
66
Number of Words:
16777216 words
Number of Words Code:
16000000
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
70 °C
Organization:
16MX16
Output Characteristics:
3-STATE
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP66,.46
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Refresh Cycles:
8192
Seated Height-Max:
1.194 mm
Self Refresh:
YES
Sequential Burst Length:
2,4,8
Standby Current-Max:
0.004 A
Supply Current-Max:
0.21 mA
Supply Voltage-Max (Vsup):
2.7 V
Supply Voltage-Min (Vsup):
2.3 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN BISMUTH
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
20
Width:
10.155 mm
H5DU2562GTR-E3C Frequently Asked Questions (FAQs)
The maximum operating temperature range for the H5DU2562GTR-E3C is 0°C to 85°C.
To ensure signal integrity, it is recommended to use a signal integrity analysis tool to simulate the signal transmission and optimize the PCB design. Additionally, following the JEDEC standard for DDR4 SDRAM signal routing and termination is recommended.
The H5DU2562GTR-E3C is designed to operate at 1.2V, but it can tolerate a voltage range of 1.14V to 1.26V. However, operating the module outside of its recommended voltage range may affect its performance and reliability.
The H5DU2562GTR-E3C requires refresh commands to maintain data integrity. The refresh rate is 4,096 refreshes per second, and the refresh interval is 7.8 microseconds. The controller should issue refresh commands according to the JEDEC standard for DDR4 SDRAM.
The maximum current consumption of the H5DU2562GTR-E3C is 1.35A during write operations and 1.25A during read operations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
H5DU2562GTR-E3C Overview

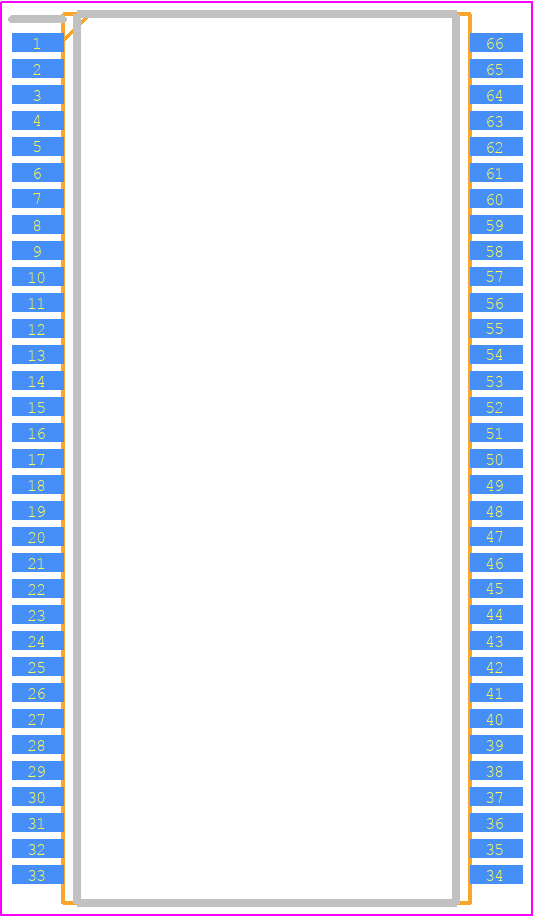

Use the download button to access the H5DU2562GTR-E3C schematic symbol, PCB footprint, and 3D model.
