A good PCB layout for HCPL-2602 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the output circuitry away from the input circuitry.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a reliable soldering process can help improve reliability.
Common failure modes of HCPL-2602 include input overvoltage, output short-circuit, and excessive temperature. To mitigate these, ensure proper input voltage clamping, use a current-limiting resistor in the output circuit, and implement thermal monitoring and protection.
While HCPL-2602 is primarily designed for low-frequency applications, it can be used in high-frequency applications with some limitations. However, the device's bandwidth and frequency response should be carefully evaluated, and the input and output circuits should be optimized for high-frequency operation.
To troubleshoot issues with HCPL-2602, start by verifying the input signal and power supply voltage. Check for proper PCB layout, soldering, and component selection. Use an oscilloscope to analyze the input and output waveforms, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2602 Overview

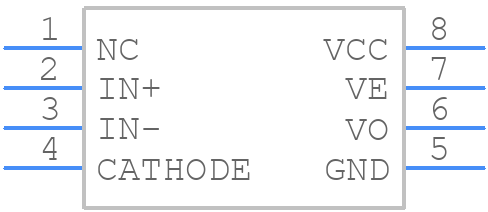

Use the download button to access the HCPL-2602 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
