A good PCB layout for HCPL-263L-300E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
Common failure modes of HCPL-263L-300E include input overvoltage, output short-circuit, and excessive temperature. To mitigate these, ensure that the device is operated within its recommended voltage and temperature ranges, and use protective circuits such as voltage regulators and fuses.
While HCPL-263L-300E is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 25 kHz. However, the device's performance may degrade at higher frequencies, and additional filtering or signal conditioning may be required.
To ensure EMC when using HCPL-263L-300E, follow good PCB design practices, use shielding and filtering, and ensure that the device is operated within its recommended voltage and temperature ranges.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-263L-300E Overview

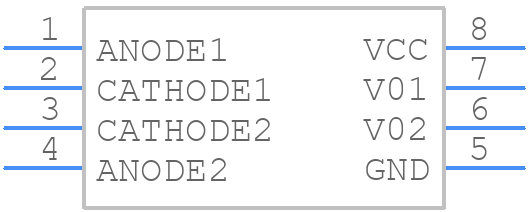

Use the download button to access the HCPL-263L-300E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
