A good PCB layout for HCPL-5500 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of HCPL-5500 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, derating the device's operating temperature range may be necessary.
To mitigate EMI and RFI when using HCPL-5500, it's crucial to use proper shielding, filtering, and grounding techniques. This includes using shielded cables, adding EMI filters, and ensuring a low-impedance ground path. Additionally, minimizing the loop area of the input and output traces can help reduce EMI emissions.
To troubleshoot common issues with HCPL-5500, start by verifying the input and output voltage levels, checking for proper power supply decoupling, and ensuring that the device is operated within its recommended operating conditions. Additionally, checking the PCB layout and ensuring that the device is properly soldered can help identify and resolve issues.
When using HCPL-5500 in a safety-critical application, it's essential to ensure that the device is used within its recommended operating conditions and that the system is designed to meet the relevant safety standards, such as IEC 61508 or ISO 26262. This may involve implementing redundant systems, using fault-tolerant designs, and performing rigorous testing and validation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-5500 Overview

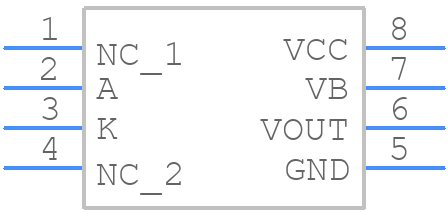

Use the download button to access the HCPL-5500 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
