A good PCB layout for HCPL-5530 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 0.1uF capacitor between VCC and GND pins to filter out noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 100°C) and consider the derating of the device's current rating. Additionally, ensure good thermal management, such as using a heat sink or thermal interface material, to prevent overheating.
The HCPL-5530 requires a differential input signal with a minimum amplitude of 200mV. It's recommended to use a signal conditioning circuit, such as a voltage divider or an op-amp, to ensure the input signal meets the required amplitude and common-mode voltage range.
To troubleshoot issues with the HCPL-5530, start by verifying the input signal amplitude and frequency, ensuring they meet the recommended specifications. Check the power supply voltage and decoupling capacitors. Use an oscilloscope to inspect the input and output waveforms, and consult the datasheet for specific troubleshooting guidelines.
Yes, the HCPL-5530 can be used in high-frequency applications, but it's essential to consider the device's bandwidth (up to 10MHz) and ensure the input signal frequency is within the recommended range. Additionally, proper PCB layout and signal integrity are crucial to maintain signal fidelity and prevent electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-5530 Overview

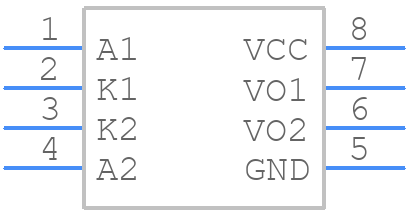

Use the download button to access the HCPL-5530 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
