A good PCB layout for HCPL-5631 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the cable away from noise sources.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, ensure that the device is operated within its recommended temperature range.
When handling HCPL-5631, it's essential to take ESD protection measures, such as wearing an anti-static wrist strap, using an anti-static mat, and storing the devices in anti-static packaging. It's also recommended to handle the devices by the body rather than the leads to prevent damage.
While HCPL-5631 is designed for isolated applications, it can be used in non-isolated applications with proper circuit design and layout. However, it's essential to ensure that the input and output circuits are properly decoupled, and the device is operated within its recommended voltage range.
To troubleshoot issues with HCPL-5631, start by verifying the input signal integrity, checking the power supply voltage, and ensuring that the device is operated within its recommended temperature range. Use an oscilloscope to check the output signal waveform and voltage levels. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-5631 Overview

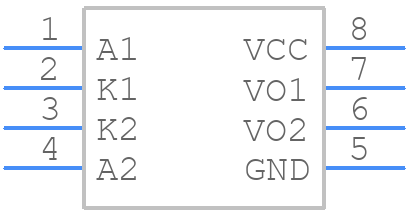

Use the download button to access the HCPL-5631 schematic symbol and PCB footprint.
