A good PCB layout for the HD3SS214ZQER involves keeping the high-speed signals away from the power and ground planes, using a solid ground plane, and minimizing the length of the traces. Additionally, it's recommended to use a common mode filter or a ferrite bead to reduce EMI.
The HD3SS214ZQER requires a 1.8V power supply for the digital core and a 3.3V power supply for the analog circuitry. The power sequencing requirement is to power up the 1.8V supply first, followed by the 3.3V supply. It's also recommended to use a power-on reset circuit to ensure the device is properly reset during power-up.
The HD3SS214ZQER supports cable lengths up to 3 meters for USB 3.0 and 5 meters for USB 2.0. However, the actual cable length supported may vary depending on the specific application and the quality of the cable.
To implement a robust USB 3.0 link using the HD3SS214ZQER, ensure that the device is properly configured and initialized, use a high-quality cable that meets the USB 3.0 specification, and implement error detection and correction mechanisms to handle data transmission errors.
The HD3SS214ZQER has a maximum junction temperature of 125°C. To ensure reliable operation, it's recommended to keep the device temperature below 85°C. This can be achieved by using a heat sink, improving air flow, and reducing the power consumption of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3SS214ZQER Overview

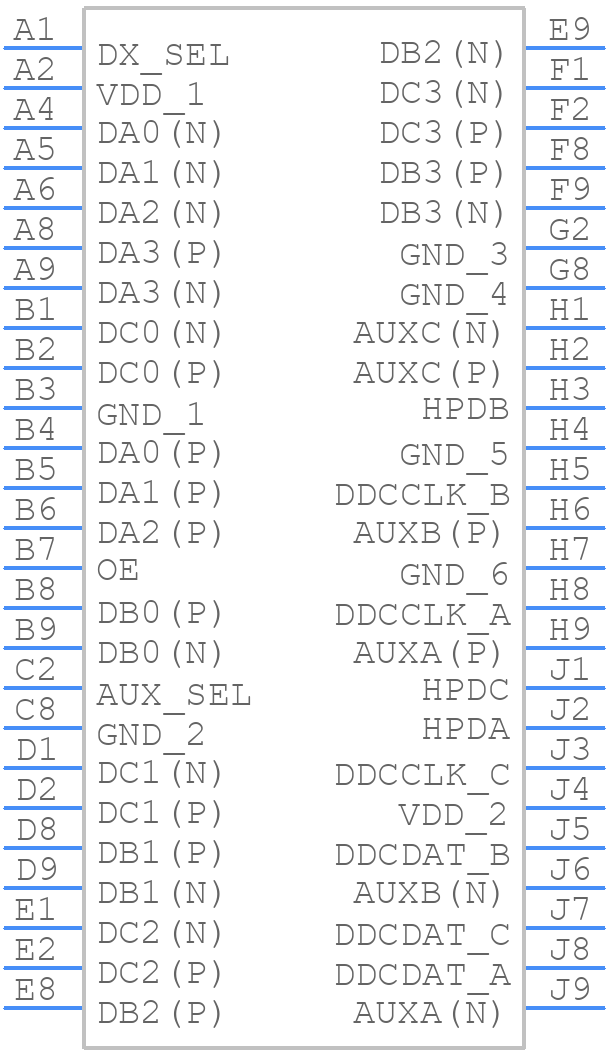

Use the download button to access the HD3SS214ZQER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
