A good PCB layout for the HD3SS215IZQER involves keeping the high-speed signals away from the power planes, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power and decoupling, use a high-quality power supply with low ripple and noise, and decouple the VCC pin with a 10uF capacitor in parallel with a 100nF capacitor. Additionally, use a 1uF capacitor to decouple the VCCIO pin.
The maximum cable length supported by the HD3SS215IZQER depends on the specific application and the type of cable used. However, as a general guideline, the maximum cable length for USB 3.0 is 3 meters, and for USB 2.0 it's 5 meters.
To troubleshoot issues with the HD3SS215IZQER, start by checking the power supply and decoupling, then verify the signal integrity and timing, and finally, use a logic analyzer or oscilloscope to debug the signal transmission.
Yes, the HD3SS215IZQER can be used in a USB 2.0-only application. However, it's recommended to use the USB 2.0 mode by setting the MODE pin to 0, and to use a USB 2.0-compliant clock source.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3SS215IZQER Overview

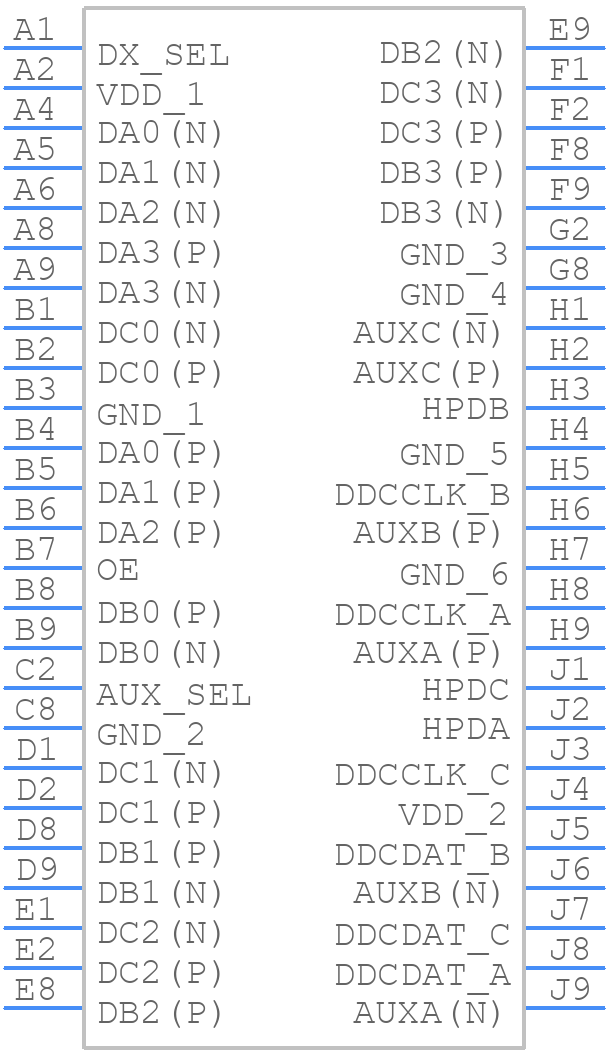

Use the download button to access the HD3SS215IZQER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
