Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the power and ground pins are connected to a low-impedance source.
To minimize EMI, use differential signaling, keep signal traces short and away from edges, and use shielding or guard traces. Also, ensure that the device is placed close to the connector or antenna to reduce signal degradation. Texas Instruments recommends using a common-mode filter or a pi-filter to reduce EMI.
The HD3SS215IZXHR is rated for operation from -40°C to 85°C. However, it's essential to consider the thermal design and ensure that the device is properly cooled, especially in high-power or high-temperature applications.
The HD3SS215IZXHR is a USB 3.0-capable device, but it can be configured for USB 2.0 operation by setting the appropriate registers. Refer to the datasheet and application notes for specific configuration details and register settings.
The HD3SS215IZXHR requires a specific power sequencing to ensure proper operation. The VCC pin should be powered up before the VDD pin, and the VDD pin should be powered down before the VCC pin. Refer to the datasheet for specific power sequencing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3SS215IZXHR Overview

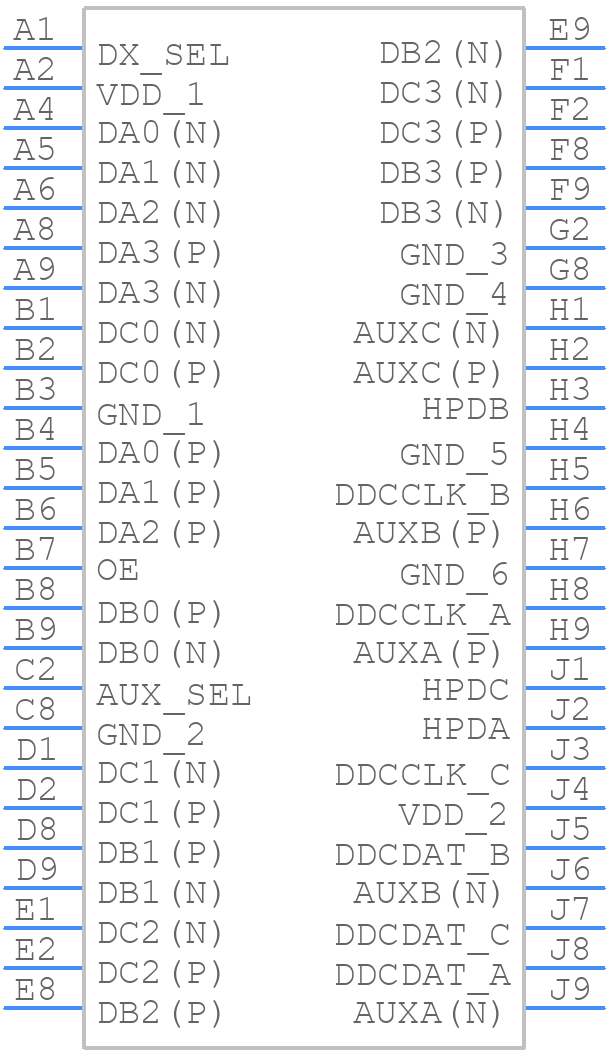

Use the download button to access the HD3SS215IZXHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS,
or try a keyword search, such as Multiplexers or Switches
