HD3SS3411IRWAT - Texas Instruments

Description: Multiplexer Switch ICs 3.3-V PCI Express 3.0 1-channel analog differential switch 14-WQFN -40 to 105

Download HD3SS3411IRWAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

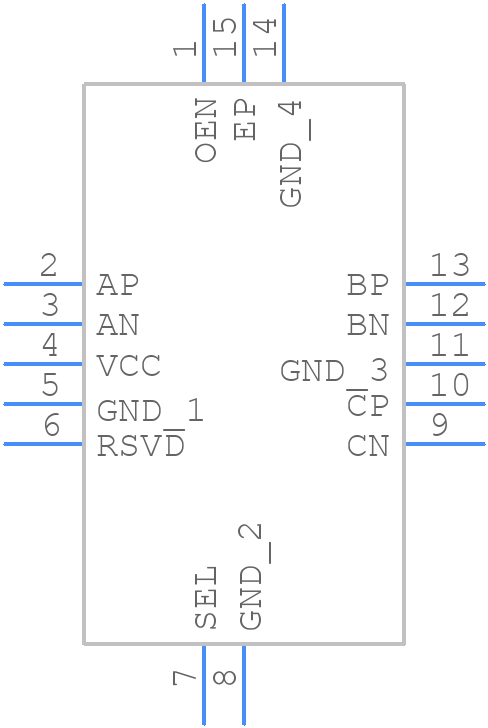

HD3SS3411IRWAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS3411IRWAT - Texas Instruments PCB footprint - Other - Other - HD3SS3411IRWAT-2
click to zoom
3D Models
HD3SS3411IRWAT - Texas Instruments - 3D model - Other - HD3SS3411IRWAT-2
click to zoom

HD3SS3411IRWAT Details

  • Manufacturer Part Number:

    HD3SS3411IRWAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 2:1

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • Bandwidth-Nom:

    7500 MHz

  • JESD-30 Code:

    S-PQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC14,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

HD3SS3411IRWAT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce EMI.
  • The HD3SS3411IRWAT requires a 1.8V to 3.3V power supply. Ensure that the power supply is stable and clean. Power sequencing is not critical, but it's recommended to power up the VCC pin first, followed by the VCCIO pin.
  • The maximum cable length supported by the HD3SS3411IRWAT is 3 meters. Use a shielded cable with a characteristic impedance of 90 ohms to minimize signal degradation and EMI.
  • Use an oscilloscope to check the signal integrity and voltage levels. Check the power supply and ensure it's stable and clean. Verify the PCB layout and routing to ensure it meets the recommended guidelines. Consult the datasheet and application notes for troubleshooting guides.
  • The HD3SS3411IRWAT has a maximum junction temperature of 125°C. Ensure good airflow around the device, and use a heat sink if necessary. Monitor the device temperature using the thermal monitoring pin (TMON) and take corrective action if the temperature exceeds the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HD3SS3411IRWAT Overview

Use the download button to access the HD3SS3411IRWAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS, or try a keyword search, such as Multiplexers or Switches

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
