HD3SS3411TRWARQ1 - Texas Instruments

Description: PCI Express Switch Mux/Demux 1-CH Automotive 14-Pin WQFN EP T/R

Download HD3SS3411TRWARQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

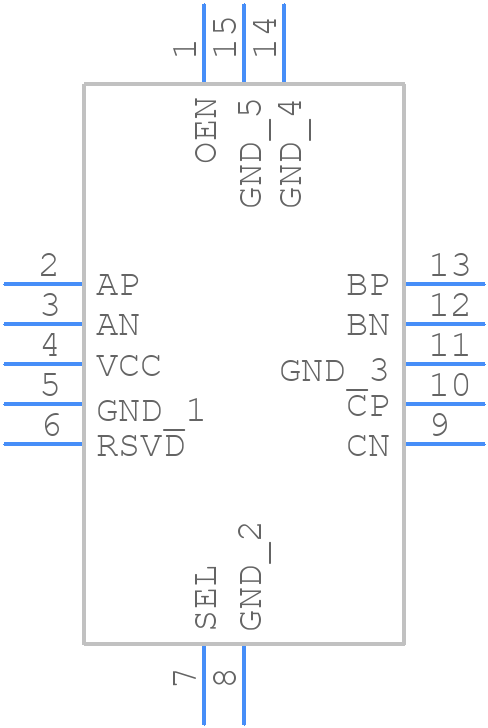

Symbol
HD3SS3411TRWARQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS3411TRWARQ1 - Texas Instruments PCB footprint - Other - Other - HD3SS3411TRWARQ1-4
click to zoom
3D Models
HD3SS3411TRWARQ1 - Texas Instruments - 3D model - Other - HD3SS3411TRWARQ1-4
click to zoom

HD3SS3411TRWARQ1 Details

  • Manufacturer Part Number:

    HD3SS3411TRWARQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 2:1 SPDT

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • Bandwidth-Nom:

    7500 MHz

  • JESD-30 Code:

    S-PQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC14,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

HD3SS3411TRWARQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the high-speed signals away from the power and ground planes, and to use a solid ground plane to reduce EMI. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper power and decoupling, it is recommended to use a high-quality power supply with low noise and ripple, and to decouple the power pins with 0.1uF and 10uF capacitors. Additionally, it is recommended to use a 10nF capacitor to decouple the VCC pin.
  • The maximum cable length supported by the HD3SS3411TRWARQ1 is dependent on the specific application and the type of cable used. However, as a general guideline, the maximum cable length for USB 3.2 Gen 2 is around 3 meters.
  • To troubleshoot issues with the HD3SS3411TRWARQ1, it is recommended to use a logic analyzer or an oscilloscope to capture the signal waveforms and analyze the data transmission. Additionally, it is recommended to check the power supply and decoupling, and to verify that the device is properly configured and initialized.
  • Yes, the HD3SS3411TRWARQ1 is compatible with USB-C and Power Delivery (PD). It supports USB-C Alternate Modes (Alt Modes) and Power Delivery (PD) up to 100W.
