A good PCB layout for the HD3SS460IRNHR involves keeping the high-speed signals away from the power planes, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The HD3SS460IRNHR requires a 1.8V power supply for the digital core and a 3.3V power supply for the analog circuits. The power sequencing requirement is to power up the 1.8V supply first, followed by the 3.3V supply. It's also recommended to use a power-on reset circuit to ensure the device is properly reset during power-up.
The HD3SS460IRNHR has a maximum junction temperature of 125°C. To ensure reliable operation, it's recommended to keep the device temperature below 85°C. This can be achieved by using a heat sink, improving air flow, and reducing the power consumption of the device.
To configure the HD3SS460IRNHR for USB 3.0 operation, you need to set the USB_CFG pin to a logic high, and configure the device using the I2C interface. You also need to ensure that the device is powered up in the correct mode, and that the USB 3.0 signals are properly routed to the device.
The HD3SS460IRNHR has built-in ESD protection, but it's still recommended to take precautions to prevent ESD damage during handling and assembly. This includes using an ESD wrist strap, an anti-static mat, and storing the devices in anti-static packaging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3SS460IRNHR Overview

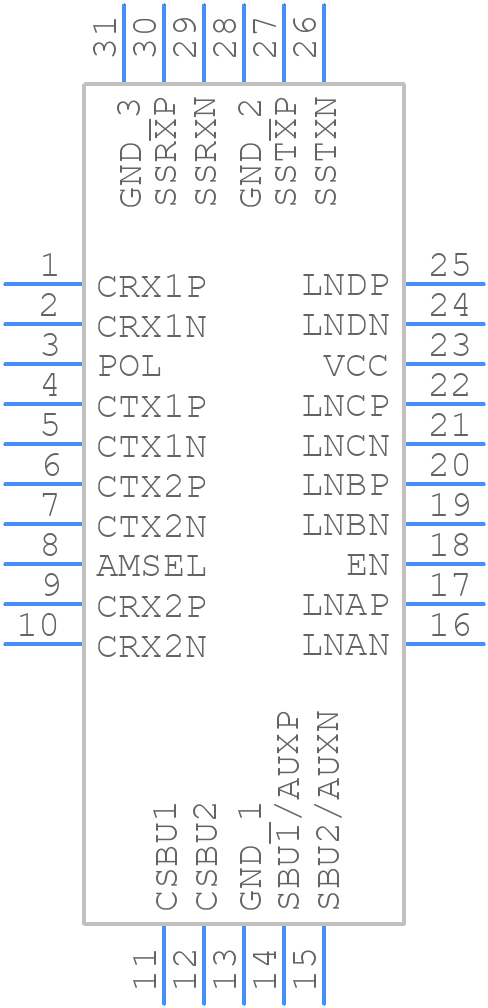

Use the download button to access the HD3SS460IRNHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
