Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize signal integrity issues.
To minimize EMI emissions, it's essential to follow proper high-speed signal routing and termination techniques, such as using differential pairs, controlled impedance lines, and shielding. Additionally, consider using EMI filters or common-mode chokes to reduce emissions. Texas Instruments also provides guidance on high-speed signal design in their application note SLVAE03.
The maximum cable length supported by the HD3SS460IRNHT depends on the specific application and signal frequency. As a general guideline, Texas Instruments recommends keeping cable lengths below 3 meters for high-speed signals (e.g., USB 3.2 Gen 2) to minimize signal attenuation and distortion. Longer cable lengths may require additional signal conditioning or repeaters to maintain signal integrity.
The HD3SS460IRNHT requires a specific power sequencing and voltage regulation scheme to ensure proper operation. Texas Instruments recommends following the power sequencing guidelines outlined in the datasheet, and using a voltage regulator that can provide a stable 1.8V or 3.3V supply to the device. Additionally, consider using a power management IC (PMIC) that can provide voltage regulation and power sequencing for the entire system.
The HD3SS460IRNHT has a maximum junction temperature of 125°C. To prevent overheating, ensure proper thermal management by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Texas Instruments also recommends following the thermal design guidelines outlined in the application note SLVAE05.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3SS460IRNHT Overview

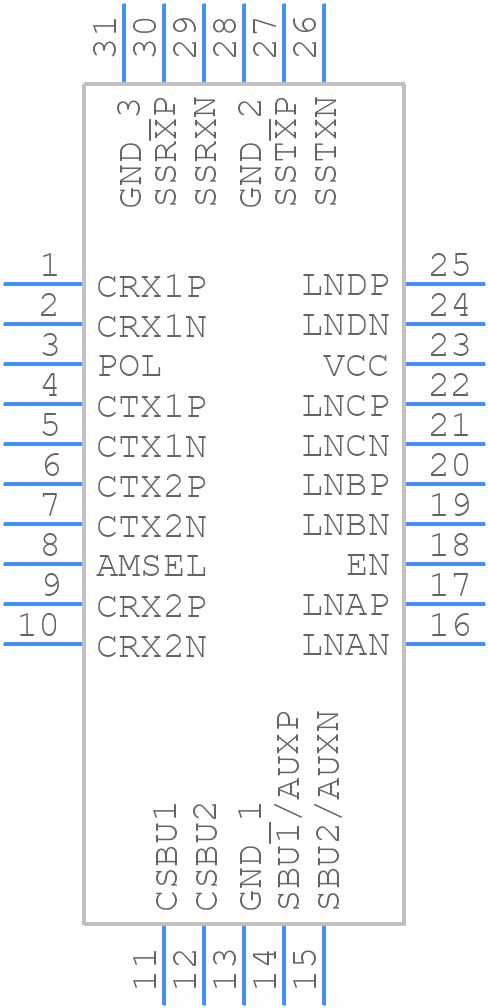

Use the download button to access the HD3SS460IRNHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS,
or try a keyword search, such as Multiplexers or Switches
