HD3SS460RNHR - Texas Instruments

Description: USB Type-C Alternate Mode 4x6 Differential Switch

Download HD3SS460RNHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

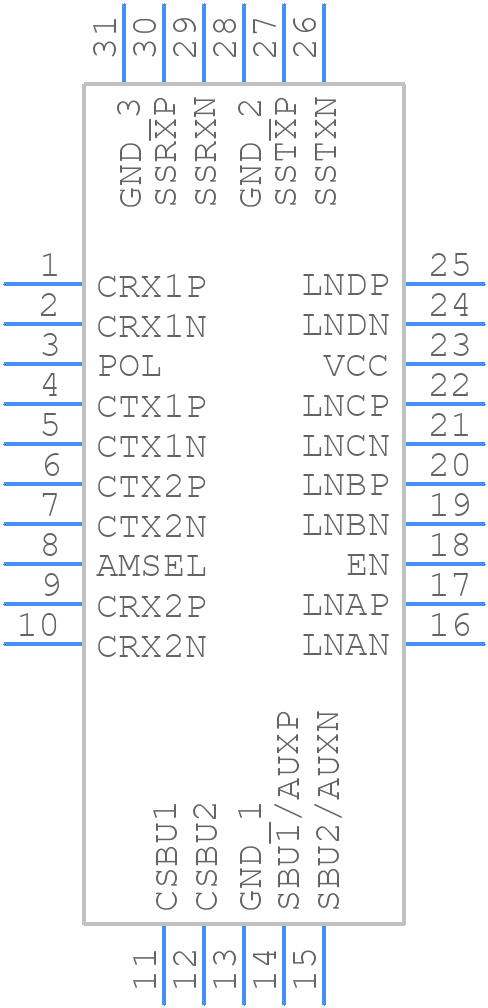

HD3SS460RNHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS460RNHR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RNH0030A
click to zoom
3D Models
HD3SS460RNHR - Texas Instruments - 3D model - Quad Flat No-Lead - RNH0030A
click to zoom

HD3SS460RNHR Details

  • Manufacturer Part Number:

    HD3SS460RNHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 4:6

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    2700 MHz

  • JESD-30 Code:

    R-PQCC-N30

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    8 Ω

  • On-state Resistance-Max (Ron):

    14 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC30,.18X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    3000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

HD3SS460RNHR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-speed signals away from the power plane and use a shielded cable for the USB interface. Refer to the TI application note 'PCB Layout Guidelines for HD3SS460RNHR' for more details.
  • The HD3SS460RNHR requires a 1.8V core voltage and 3.3V I/O voltage. Power sequencing is critical, with VCCIO (3.3V) needing to be applied before VCC (1.8V). A soft-start circuit can be used to ensure a smooth power-up sequence.
  • The HD3SS460RNHR has a thermal pad that must be connected to a solid ground plane for heat dissipation. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating in a high-temperature environment.
  • The HD3SS460RNHR requires a 125MHz clock source for USB 3.0 operation. Ensure the USB interface is properly terminated with 45Ω resistors, and use a high-quality USB 3.0 cable that meets the USB-IF specification.
  • The built-in voltage regulators can be configured for optimal power consumption using the device's register settings. Refer to the datasheet and application notes for specific guidance on configuring the regulators for low power consumption.
