HD3SS460RHRR - Texas Instruments

Description: USB Type-C Alternate Mode 4x6 Differential Switch

Download HD3SS460RHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

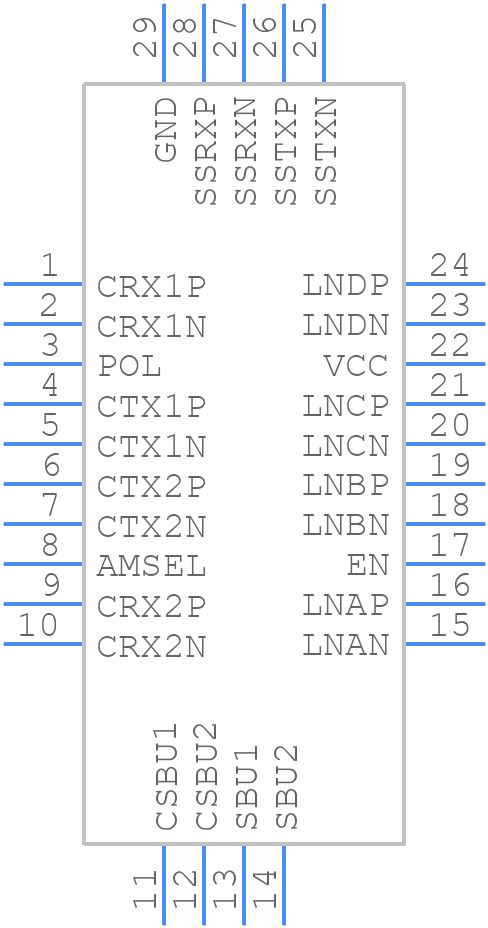

HD3SS460RHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS460RHRR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHR0028A
click to zoom
3D Models
HD3SS460RHRR - Texas Instruments - 3D model - Quad Flat No-Lead - RHR0028A
click to zoom

HD3SS460RHRR Details

  • Manufacturer Part Number:

    HD3SS460RHRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 4:6

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    2700 MHz

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    8 Ω

  • On-state Resistance-Max (Ron):

    14 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.14X.22,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    3000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

HD3SS460RHRR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the high-speed signals away from the power planes. Additionally, use a common mode filter and a shielded cable for the USB interface to minimize EMI.
  • The HD3SS460RHRR requires a 1.8V to 3.3V power supply, and the power sequencing is critical. The VCCIO pin should be powered up first, followed by the VCC pin. The VCCIO pin should be powered down last to prevent latch-up.
  • The HD3SS460RHRR has a thermal pad that must be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.
  • The HD3SS460RHRR can be configured for USB 3.0 or USB 2.0 operation by setting the USB_CFG pin high or low, respectively. Additionally, the device can be configured using the I2C interface to set the USB mode and other parameters.
  • The HD3SS460RHRR has built-in ESD protection, but additional protection measures should be taken. Use ESD-sensitive handling procedures, and ensure the device is properly grounded during handling and assembly. Use ESD protection devices on the USB interface and other external connections.
