HDC1008YPAR - Texas Instruments

Description: Humidity/Temperature Sensor Digital Serial (2-Wire, I2C) Automotive Medical 8-Pin DSBGA T/R

Download HDC1008YPAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

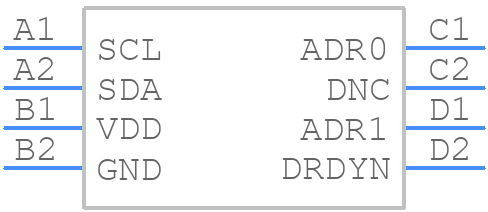

HDC1008YPAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HDC1008YPAR - Texas Instruments PCB footprint - BGA - BGA - YPA0008
click to zoom
3D Models
HDC1008YPAR - Texas Instruments - 3D model - BGA - YPA0008
click to zoom

HDC1008YPAR Details

  • Manufacturer Part Number:

    HDC1008YPAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    2.04 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.59 mm

HDC1008YPAR Frequently Asked Questions (FAQs)

  • The HDC1008YPAR is a sensitive device and requires careful layout and placement to ensure accurate readings. It's recommended to place the device near the sensing area, use a solid ground plane, and keep the device away from high-frequency signals and noise sources.
  • The HDC1008YPAR does not require calibration, as it is a digital sensor with internal calibration. However, it's recommended to perform a system-level calibration to account for any system-specific errors or variations.
  • The HDC1008YPAR can measure humidity from 0% to 100% relative humidity (RH), but it's recommended to operate within the 5% to 95% RH range for optimal accuracy.
  • The HDC1008YPAR is rated for operation from -40°C to 125°C, but it's recommended to operate within the 0°C to 70°C range for optimal accuracy and reliability.
  • The HDC1008YPAR uses a standard I2C interface, and it's recommended to use a pull-up resistor on the SCL and SDA lines, as well as to use a repeater or buffer if the bus is long or noisy.
