HDC1010YPAR - Texas Instruments

Description: HDC1010 Low Power, High Accuracy Digital Humidity Sensor with Temperature Sensor

Download HDC1010YPAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

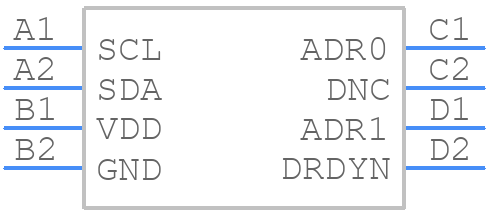

HDC1010YPAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HDC1010YPAR - Texas Instruments PCB footprint - BGA - BGA - YPA0008_2021
click to zoom
3D Models
HDC1010YPAR - Texas Instruments - 3D model - BGA - YPA0008_2021
click to zoom

HDC1010YPAR Details

  • Manufacturer Part Number:

    HDC1010YPAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (%):

    2%

  • Accuracy-Max (Cel):

    0.2 Cel

  • Additional Feature:

    SEATED HGT CALCULATED

  • Body Breadth:

    1.59 mm

  • Body Height:

    0.41 mm

  • Body Length or Diameter:

    2.04 mm

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    BGA8,2X4,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

HDC1010YPAR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HDC1010YPAR involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The HDC1010YPAR does not require calibration for humidity and temperature readings. However, it's recommended to perform a one-time calibration for temperature using a thermocouple or a precision temperature source. For humidity, a two-point calibration using a humidity chamber or a precision humidity source is recommended.
  • The recommended power-up sequence for the HDC1010YPAR is to apply VDD first, followed by VCC. This ensures that the internal voltage regulators are powered up correctly. It's also recommended to add a 10uF capacitor between VDD and GND to filter out noise.
  • The HDC1010YPAR's I2C bus clock stretching can be handled by using a clock stretching-aware I2C master controller or by implementing a clock stretching protocol in the microcontroller's firmware. The HDC1010YPAR can stretch the clock for up to 10ms during conversions.
  • The maximum cable length for the HDC1010YPAR's I2C bus depends on the capacitance of the cable and the clock frequency. As a general rule, a cable length of up to 1 meter is recommended for a clock frequency of 400 kHz. For longer cable lengths, it's recommended to use a repeater or a buffer.
