A good PCB layout for the HDC2080DMBR involves keeping the sensor away from high-frequency signals, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. TI provides a recommended PCB layout in the datasheet and application notes.
Calibration of the HDC2080DMBR involves a two-point calibration process for humidity and a one-point calibration for temperature. TI provides a calibration procedure in the datasheet and application notes, which involves exposing the sensor to known humidity and temperature conditions and adjusting the internal calibration registers accordingly.
The recommended power-up sequence for the HDC2080DMBR involves applying VDD first, followed by VIO, and then initializing the sensor through the I2C interface. This ensures that the internal voltage regulators and analog circuits are properly powered up and stabilized before the sensor is initialized.
In a multi-master environment, it's essential to implement arbitration and collision detection mechanisms to prevent data corruption and ensure reliable communication with the HDC2080DMBR. TI recommends using a dedicated I2C bus controller or a microcontroller with built-in I2C arbitration capabilities.
The HDC2080DMBR is sensitive to thermal gradients and self-heating effects, which can affect temperature accuracy. To ensure accurate temperature readings, it's essential to provide good thermal coupling between the sensor and the PCB, avoid thermal gradients, and minimize self-heating effects by keeping the sensor away from high-power components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HDC2080DMBR Overview

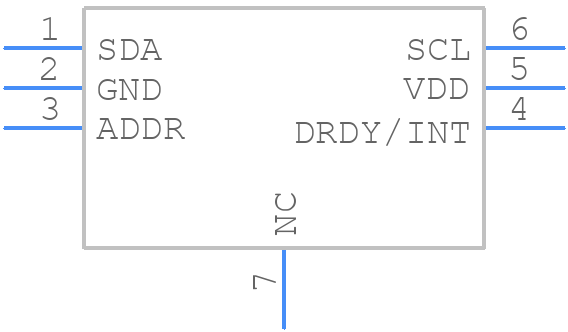

Use the download button to access the HDC2080DMBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDC20,
or try a keyword search, such as Other Sensors/Transducers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
