HDC2080DMBT - Texas Instruments

Description: Board Mount Humidity Sensors Low Power Humidity and Temperature Digital Sensor 6-WSON -40 to 85

Download HDC2080DMBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

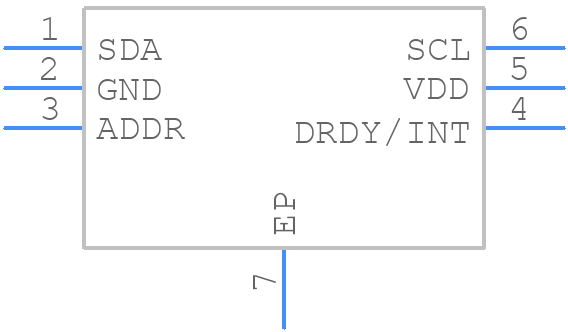

HDC2080DMBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HDC2080DMBT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMB0006A
click to zoom
3D Models
HDC2080DMBT - Texas Instruments - 3D model - Small Outline No-lead - DMB0006A
click to zoom

HDC2080DMBT Details

  • Manufacturer Part Number:

    HDC2080DMBT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (%):

    2%

  • Accuracy-Max (Cel):

    0.2 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC6,.12,40

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

HDC2080DMBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the HDC2080DMBT datasheet, which includes a land pattern and a thermal pad layout. It is recommended to follow this layout to ensure optimal performance and thermal management.
  • The HDC2080DMBT does not require calibration. It is a digital humidity and temperature sensor that provides calibrated output data. However, it is recommended to perform a system-level calibration to compensate for any system-specific errors or variations.
  • The maximum cable length for the I2C interface of the HDC2080DMBT depends on the system design and the capacitance of the cable. As a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 10 cm) to minimize signal degradation and ensure reliable communication.
  • The HDC2080DMBT has a sleep mode that can be enabled by setting the appropriate register bits. The wake-up time is typically around 2-3 ms. It is recommended to refer to the datasheet for the specific wake-up time and sleep mode control registers.
  • The recommended power-up sequence for the HDC2080DMBT is to first apply the supply voltage (VDD) and then the input voltage (VIN). This ensures that the internal voltage regulators are properly enabled and the device is powered up correctly.
