A good PCB layout for the HDC3022QDEJRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power decoupling.
To ensure accurate readings, it's essential to calibrate the HDC3022QDEJRQ1 during manufacturing or before deployment. Additionally, the device should be placed in a well-ventilated area, away from direct sunlight and heat sources. Regular cleaning of the device's sensor ports is also recommended to prevent contamination.
The recommended power-up sequence for the HDC3022QDEJRQ1 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the input clock signal. This sequence helps prevent latch-up and ensures proper device operation.
The HDC3022QDEJRQ1's interrupt signals can be handled by connecting them to a microcontroller's interrupt pins. The interrupt signals can be configured to trigger on specific events, such as temperature or humidity threshold crossings. The microcontroller can then respond to these interrupts by executing specific code or taking actions based on the interrupt source.
The maximum cable length for the HDC3022QDEJRQ1's I2C interface depends on the specific application and the capacitance of the cable. As a general guideline, the maximum cable length should not exceed 10 meters (33 feet) to ensure reliable communication. However, this can be extended using I2C bus extenders or repeaters.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HDC3022QDEJRQ1 Overview

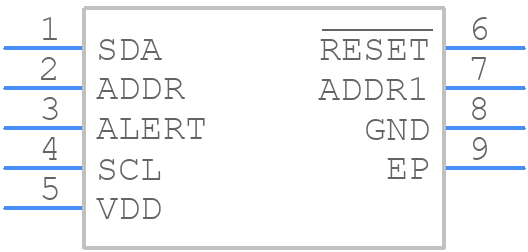

Use the download button to access the HDC3022QDEJRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDC30,
or try a keyword search, such as Other Sensors/Transducers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
