HDC9M5R800S - Positronic

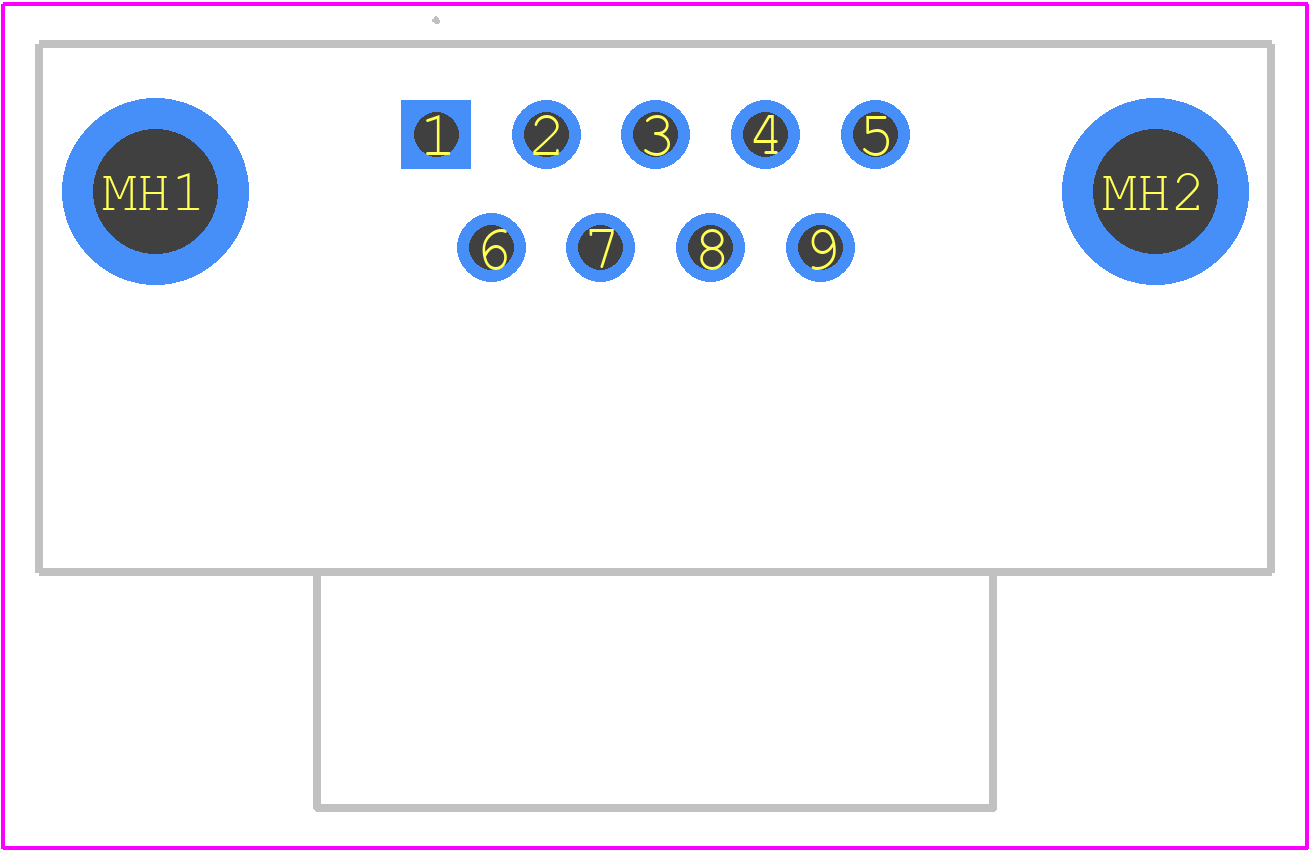

HDC9M5R800S Details

• Manufacturer Part Number:

  HDC9M5R800S

• Part Life Cycle Code:

  Active

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Amphenol Positronic

• YTEOL:

  9

• Additional Feature:

  STANDARD: IEC 60807-3, MIL-DTL-24308

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.494 inch

• Body Depth:

  0.395 inch

• Body Length:

  1.213 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Design:

  MACHINED

• Contact Gender:

  MALE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  4 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1400VAC V

• Durability:

  1000 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  GREEN

• Insulator Material:

  GLASS FILLED DIALLYL PHTHALATE

• Mating Contact Pitch:

  0.108 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Rated Current (Signal):

  18 A

• Reference Standard:

  CSA;IEC;UL

• Shell Material:

  STAINLESS STEEL

• Shell Size:

  1/E

• Terminal Pitch:

  2.74 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0
