HDSP-303E - Avago Technologies

Description: LED Displays & Accessories Red 625nm 10mm 7 Segment

Download HDSP-303E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HDSP-303E model

Email notifications will be applied after download.

Send part feedback

Symbol

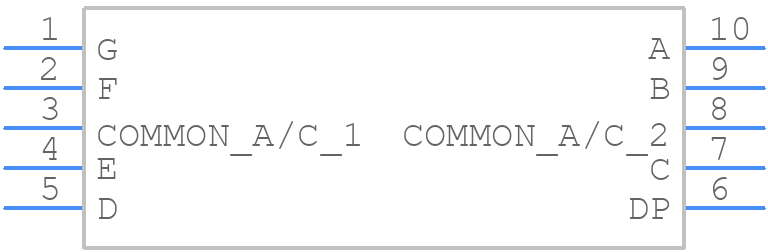

HDSP-303E - Avago Technologies - PCB symbol

PCB Footprints

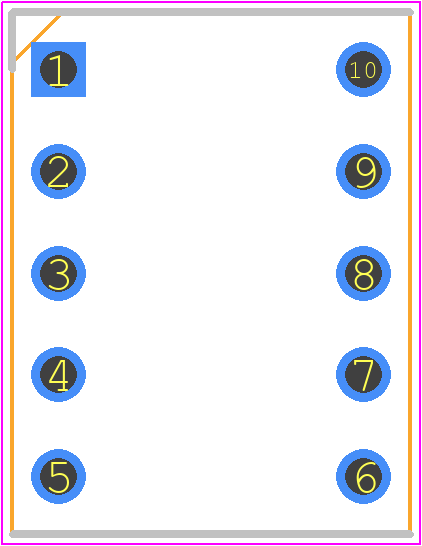

HDSP-303E - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - HDSP-301x/303x Series

Datasheet Download Datasheet
Stock & Prices Price & Stock for HDSP-303E
Part Number HDSP-303E
Manufacturer Avago Technologies
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - HDSP-301x/303x Series
Released Date Feb 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HDSP-303E Details

Manufacturer Part Number:
HDSP-303E
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
HTS Code:
8541.40.80.00
Manufacturer:
Avago Technologies
JESD-609 Code:
e3
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Terminal Finish:
Tin (Sn)

Trust Checks

Expert Contribution

System Verified

Community Approved

HDSP-303E Overview

Use the download button to access the HDSP-303E schematic symbol and PCB footprint.
