HFA3102BZ96 - Renesas Electronics

Description: The HFA3102 is an all NPN transistor array configured as dual differential amplifiers with tail transistors. Based on Intersil bonded wafer UHF-1 SOI process, this array achieves very high fT (10GHz) while maintaining excellent hFE and VBE matching characteristics over temperature. Collector leakage currents are maintained to under 0. 01nA.

Download HFA3102BZ96 Model

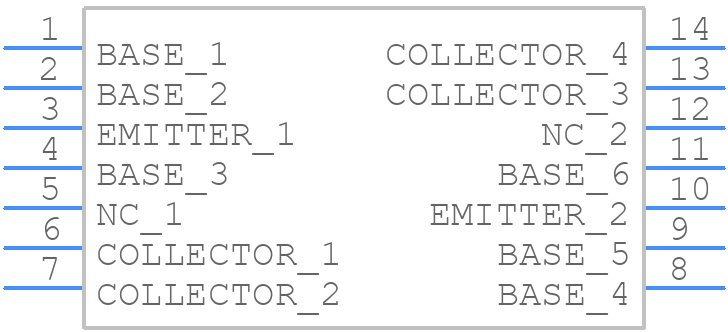

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HFA3102BZ96 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M14.15
click to zoom
3D Models
HFA3102BZ96 - Renesas Electronics  - 3D model - Small Outline Packages - M14.15
click to zoom

HFA3102BZ96 Details

  • Manufacturer Part Number:

    HFA3102BZ96

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Pin Count:

    14

  • Manufacturer Package Code:

    M14.15

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Collector Current-Max (IC):

    0.03 A

  • Collector-Base Capacitance-Max:

    300 pF

  • Collector-Emitter Voltage-Max:

    8 V

  • Configuration:

    COMPLEX

  • DC Current Gain-Min (hFE):

    40

  • Highest Frequency Band:

    ULTRA HIGH FREQUENCY BAND

  • JEDEC-95 Code:

    MS-012AB

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    6

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    10000 MHz

HFA3102BZ96 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in their application note AN9834, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The HFA3102BZ96 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Additionally, Renesas recommends using a heat sink or thermal interface material to further improve thermal management.
  • The HFA3102BZ96 has an operating temperature range of -40°C to +125°C, but it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Renesas recommends operating the device within the specified temperature range to ensure optimal performance and reliability.
  • Renesas provides troubleshooting guidelines in their application note AN9834, which covers common issues and their possible causes, such as layout-related problems, component selection, and incorrect configuration. Additionally, Renesas recommends using simulation tools and oscilloscopes to debug and analyze the circuit behavior.
  • Yes, Renesas recommends using EMI mitigation techniques such as shielding, filtering, and layout optimization to minimize electromagnetic interference. Additionally, Renesas suggests using a common-mode choke and a differential-mode filter to reduce EMI emissions.
