Description:The HFA3046, HFA3096, HFA3127 and the HFA3128 are ultra high frequency transistor arrays that are fabricated from the Renesas complementary bipolar UHF-1 process. Each array consists of five dielectrically isolated transistors on a common monolithic substrate. The NPN transistors exhibit a fT of 8GHz while the PNP transistors provide a fT of 5. 5GHz. Both types exhibit low noise (3. 5dB), making them ideal for high frequency amplifier and mixer applications. The HFA3046 and HFA3127 are all NPN arrays while
Renesas provides a recommended PCB layout in the application note 'HFA3127BZ96 PCB Layout Guidelines' (document number R01DS0244EJ0100). It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
The HFA3127BZ96 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Refer to the thermal management section in the datasheet for more information.
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input signals. This sequence helps prevent latch-up and ensures proper device operation. Refer to the application note 'HFA3127BZ96 Power-Up/Down Sequence' (document number R01DS0245EJ0100) for more details.
Renesas provides a troubleshooting guide in the application note 'HFA3127BZ96 Troubleshooting Guide' (document number R01DS0246EJ0100). This guide covers common issues, such as output voltage errors, oscillations, and thermal shutdowns, and provides steps to identify and resolve them.
Yes, the HFA3127BZ96 is a high-frequency device, and proper EMI/EMC design is crucial. Renesas recommends following the guidelines in the application note 'HFA3127BZ96 EMI/EMC Design Guide' (document number R01DS0247EJ0100) to minimize electromagnetic interference and ensure compliance with regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFA3127BZ96 Overview

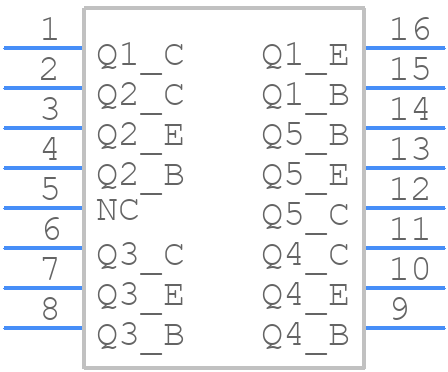

Use the download button to access the HFA3127BZ96 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFA31,
or try a keyword search, such as RF Small Signal Bipolar Transistors
