HFA3127RZ - Renesas Electronics

Description: The HFA3046, HFA3096, HFA3127 and the HFA3128 are ultra high frequency transistor arrays that are fabricated from the Renesas complementary bipolar UHF-1 process. Each array consists of five dielectrically isolated transistors on a common monolithic substrate. The NPN transistors exhibit a fT of 8GHz while the PNP transistors provide a fT of 5. 5GHz. Both types exhibit low noise (3. 5dB), making them ideal for high frequency amplifier and mixer applications. The HFA3046 and HFA3127 are all NPN arrays while

Download HFA3127RZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

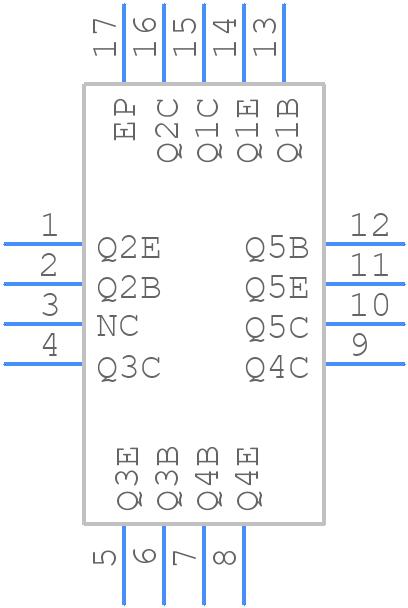

Symbol
HFA3127RZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HFA3127RZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.3x3
click to zoom
3D Models
HFA3127RZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.3x3
click to zoom

HFA3127RZ Details

  • Manufacturer Part Number:

    HFA3127RZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.3X3

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    LOW NOISE

  • Collector Current-Max (IC):

    0.037 A

  • Collector-Base Capacitance-Max:

    0.2 pF

  • Collector-Emitter Voltage-Max:

    8 V

  • Configuration:

    SEPARATE, 5 ELEMENTS

  • DC Current Gain-Min (hFE):

    40

  • Highest Frequency Band:

    ULTRA HIGH FREQUENCY BAND

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Number of Elements:

    5

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.15 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    8000 MHz

HFA3127RZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling. Use a common mode choke or ferrite bead to filter the power supply lines.
  • Use a thermally conductive material for the heat sink, and ensure good thermal contact between the device and the heat sink. Keep the junction temperature below 150°C. Use a temperature sensor to monitor the device temperature and adjust the operating conditions accordingly.
  • The maximum allowed input voltage swing is ±2.5V, but it's recommended to keep it below ±2V to ensure optimal performance and minimize distortion.
  • Use a low-ESR output capacitor (e.g., ceramic or film capacitor) and a high-current output inductor. Ensure the output stage is properly biased and the output transistors are adequately heat-sinked. Use a thermal design that allows for efficient heat dissipation.
  • The recommended input impedance is 50Ω, but it can be adjusted to match the source impedance for optimal power transfer. However, keep in mind that a lower input impedance may affect the noise figure and gain of the amplifier.
