Description:Support is limited to customers who have already adopted these products.The HFA3046, HFA3096, HFA3127 and the HFA3128 are ultra high frequency transistor arrays that are fabricated from the Renesas complementary bipolar UHF-1 process. Each array consists of five dielectrically isolated transistors on a common monolithic substrate. The NPN transistors exhibit a fT of 8GHz while the PNP transistors provide a fT of 5. 5GHz. Both types exhibit low noise (3. 5dB), making them ideal for high frequency amplifier a
A good PCB layout for the HFA3128BZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Renesas provides a recommended PCB layout in their application notes.
To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure the voltage supply is stable and within the recommended range. Also, ensure that the input and output resistors are properly matched to the device's input and output impedance.
The maximum power dissipation of the HFA3128BZ is 1.2W. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature within the recommended range.
Yes, the HFA3128BZ can be used in high-frequency applications up to 1.5GHz. However, the device's performance may degrade at higher frequencies due to parasitic capacitance and inductance. Ensure that the PCB layout and component selection are optimized for high-frequency operation.
To troubleshoot common issues, start by checking the PCB layout and component values, ensuring that they match the recommended values in the datasheet. Also, verify that the power supply is stable and within the recommended range. Use a spectrum analyzer or oscilloscope to identify any unwanted oscillations or signals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFA3128BZ Overview

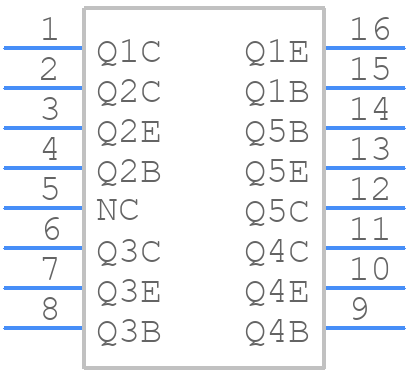

Use the download button to access the HFA3128BZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFA31,
or try a keyword search, such as RF Small Signal Bipolar Transistors
