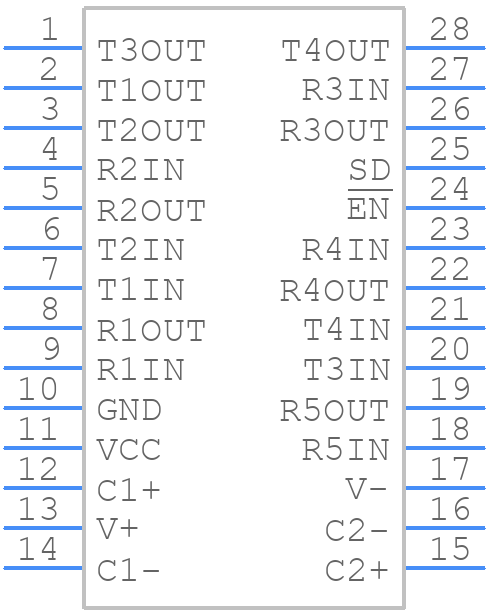

HIN211EIBZ - Renesas Electronics

HIN211EIBZ Details

• Manufacturer Part Number:

  HIN211EIBZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOICW

• Pin Count:

  28

• Manufacturer Package Code:

  M28.3

• Country Of Origin:

  Mainland China, Malaysia, Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Date Of Intro:

  2017-10-26

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7

• Differential Output:

  NO

• Driver Number of Bits:

  4

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232; V.28

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  17.9 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  4

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  10 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.0016 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Receive Delay-Max:

  10000 ns

• Receiver Number of Bits:

  5

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  10000 ns

• Width:

  7.5 mm
