Description:The HM-65162/883 is a CMOS 2048 x 8 Static Random Access Memory manufactured using the Renesas Advanced SAJI V process. The device utilizes asynchronous circuit design for fast cycle time and ease of use. The pinout is the JEDEC 24 pin DIP, and 32 pad 8-bit wide standard which allows easy memory board layouts flexible to accommodate a variety of industry standard PROMs, RAMs, ROMs and EPROMs. The HM-65162/883 is ideally suited for use in microprocessor based systems with its 8-bit word length organization.
The recommended operating temperature range for the HM1-65162C/883 is -55°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
To ensure reliable data transmission, it's crucial to follow the recommended layout and routing guidelines for the device's pins, especially the high-speed signals. Additionally, implementing proper signal termination, using differential signaling, and ensuring adequate power supply decoupling can help minimize signal integrity issues.
The HM1-65162C/883 supports a maximum clock frequency of 100 MHz. However, the actual clock frequency may be limited by the system's design and the quality of the clock signal. It's essential to consult the datasheet and application notes for specific guidance on clock frequency selection.
The HM1-65162C/883 has an internal POR and BOD circuitry. To handle POR and BOD, ensure that the power supply ramps up slowly and monotonically during power-on. Additionally, use an external reset circuit or a supervisory IC to monitor the power supply voltage and generate a reset signal if it falls below a certain threshold.
To minimize EMC and EMI issues, follow proper PCB layout and design guidelines, such as separating analog and digital circuits, using shielding, and implementing proper grounding and decoupling techniques. Additionally, ensure that the device is operated within its specified frequency range and that the system's overall design meets the relevant EMC and EMI standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HM1-65162C/883 Overview

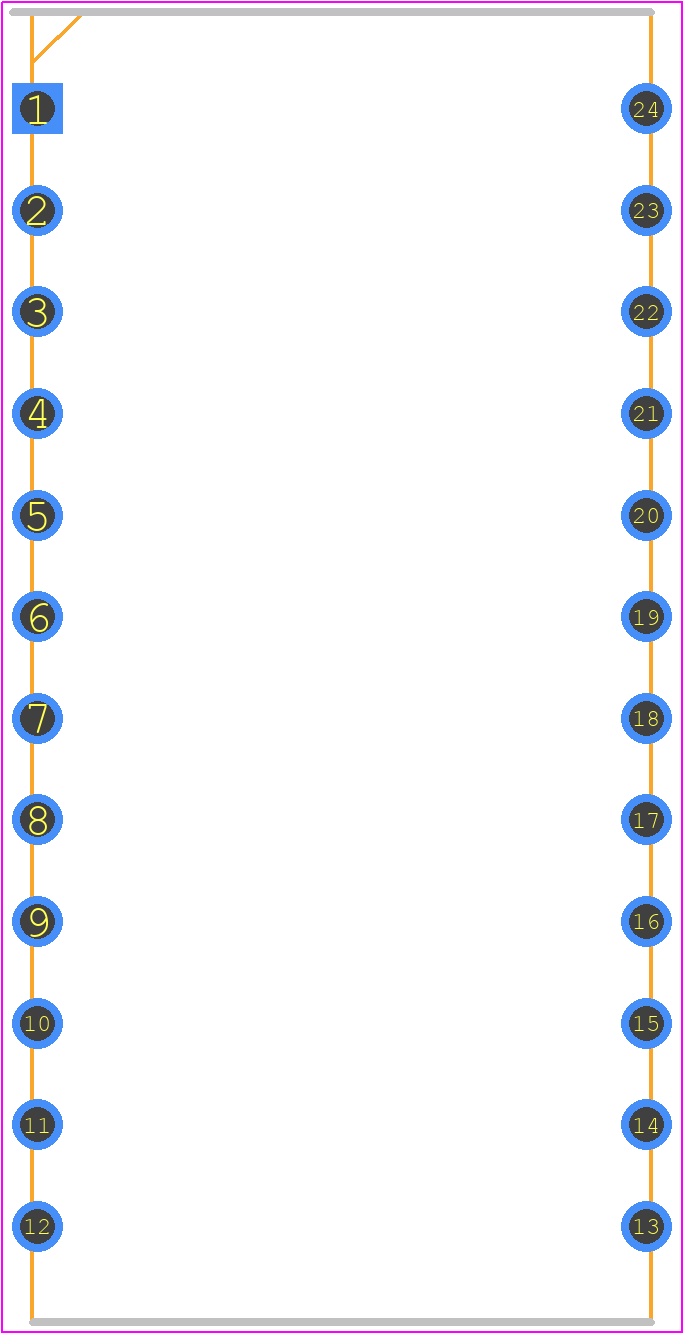

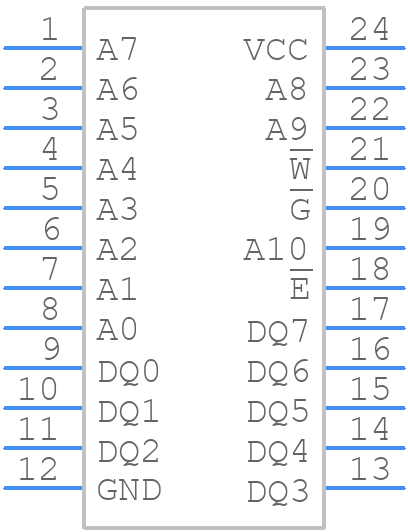

Use the download button to access the HM1-65162C/883 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HM1-6,
or try a keyword search, such as SRAMs
