HMC1013LP4ETR - Analog Devices

Description: SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (SDLVA), 0.5 - 18.5 GHz ,0.9 V ,7 mA

Download HMC1013LP4ETR Model

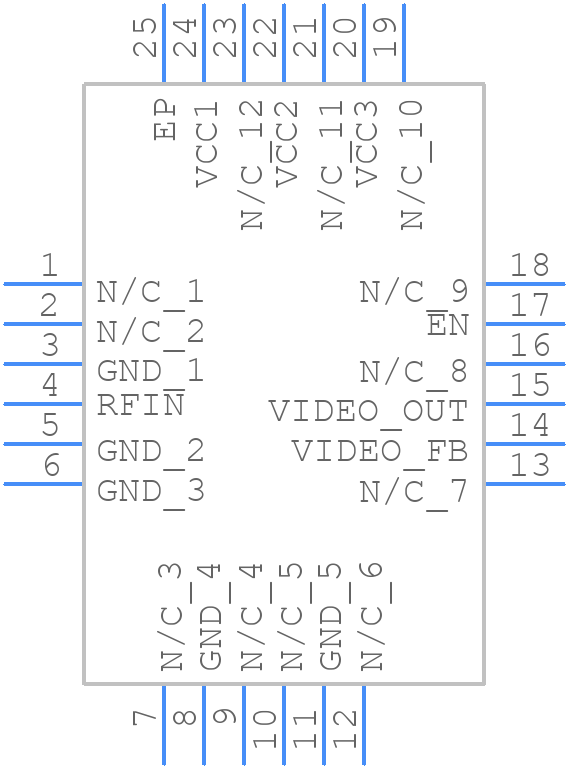

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC1013LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-24-2_2026-1.15
click to zoom

HMC1013LP4ETR Details

  • Manufacturer Part Number:

    HMC1013LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Terminal Finish:

    Matte Tin (Sn)

HMC1013LP4ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC1013LP4ETR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to Analog Devices' application notes and layout guidelines for more information.
  • The HMC1013LP4ETR requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated, and that the device is properly decoupled with bypass capacitors (e.g., 100nF and 10uF). The device also requires a bias current of around 10mA, which can be provided through a resistor divider network or a dedicated bias voltage source.
  • The HMC1013LP4ETR is specified to operate up to 13.2 GHz, but the actual operating frequency may be limited by the application, PCB layout, and other factors. In general, it's recommended to derate the operating frequency by 10-20% to ensure reliable operation and minimize signal degradation.
  • The HMC1013LP4ETR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to keep the device away from heat sources. The device's thermal resistance (θJA) is around 30°C/W, so ensure that the PCB design and thermal management strategy can keep the junction temperature below the maximum rating.
  • The HMC1013LP4ETR is a sensitive device and requires proper ESD protection to prevent damage. It's recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines, and to follow proper handling and assembly procedures to prevent ESD damage.
