HPA01113AIRGVR - Texas Instruments

Description: Current & Power Monitors & Regulators Current Sensing Device

Download HPA01113AIRGVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

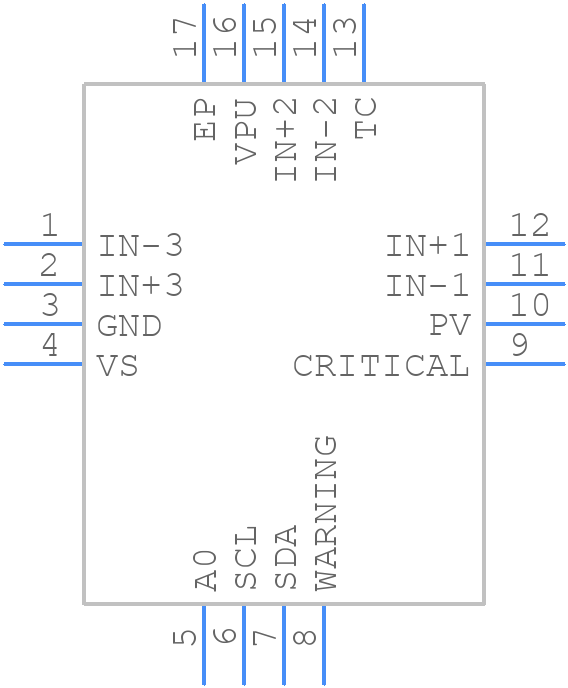

Symbol
HPA01113AIRGVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HPA01113AIRGVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)_1
click to zoom
3D Models
HPA01113AIRGVR - Texas Instruments - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)_1
click to zoom

HPA01113AIRGVR Details

  • Manufacturer Part Number:

    HPA01113AIRGVR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 2V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.45 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

HPA01113AIRGVR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the amplifier. The input and output traces should be kept short and away from the power plane to minimize noise coupling.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR capacitor for decoupling, and add a series resistor (Rs) between the output and the load to prevent oscillations. Additionally, the output should be terminated with a 50-ohm load.
  • The maximum power dissipation of the HPA01113AIRGVR is 1.4W. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature below 85°C.
  • Yes, the HPA01113AIRGVR can be used in a differential amplifier configuration. However, it's essential to follow the recommended layout and component selection guidelines to maintain common-mode rejection and minimize noise.
  • Choose input and output coupling capacitors with a high self-resonant frequency (SRF) and a low equivalent series resistance (ESR). A 10nF to 100nF capacitor with an SRF above 1GHz is recommended. The capacitor value should be selected based on the specific application's frequency requirements.
