HS1-26C32RH-Q - Renesas Electronics

Description: The Intersil HS-26C32RH, HS-26C32EH are differential line receivers designed for digital data transmission over balanced lines and meets the requirements of EIA Standard RS-422. Radiation hardened CMOS processing assures low power consumption, High-Speed, and reliable operation in the most severe radiation environments. The HS-26C32RH, HS-26C32EH have an input sensitivity typically of 200mV over the common mode input voltage range of ±7V. The receivers are also equipped with input fail safe circuitry, which

Download HS1-26C32RH-Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

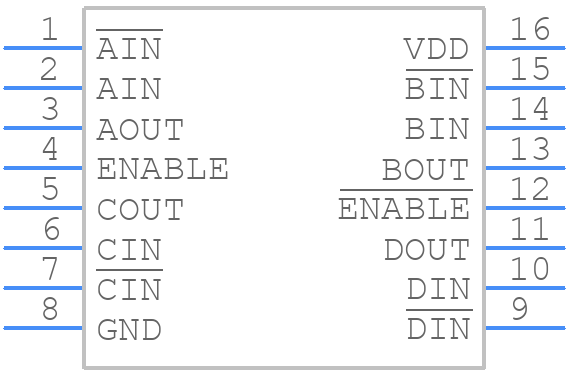

HS1-26C32RH-Q - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HS1-26C32RH-Q - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D16.3
click to zoom
3D Models
HS1-26C32RH-Q - Renesas Electronics - 3D model - Ceramic Dual-In-Line Packages - D16.3
click to zoom

HS1-26C32RH-Q Details

  • Manufacturer Part Number:

    HS1-26C32RH-Q

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SBDIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    D16.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422

  • JESD-30 Code:

    R-CDIP-T16

  • JESD-609 Code:

    e0

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    4

  • Screening Level:

    MIL-PRF-38535 Class V

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Dose:

    300k Rad(Si) V

  • Width:

    7.62 mm

HS1-26C32RH-Q Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HS1-26C32RH-Q is 2.7V to 5.5V.
  • The HS1-26C32RH-Q has a built-in POR and BOR circuit. The POR is triggered when the power supply voltage rises above 2.7V, and the BOR is triggered when the power supply voltage falls below 2.2V. You can use external resistors and capacitors to adjust the reset timing and threshold.
  • The HS1-26C32RH-Q supports a maximum clock frequency of 32 MHz.
  • The WDT in the HS1-26C32RH-Q is used to reset the microcontroller in case of a software fault. You can enable the WDT by setting the WDTEN bit in the WDT control register. The WDT timeout period can be set using the WDT period select bits.
  • The LVD in the HS1-26C32RH-Q is used to detect when the power supply voltage falls below a certain threshold. When the LVD is triggered, the microcontroller can take action to prevent data corruption or system malfunction.
