HS420561 - CDIL

Description: Multiple Digit 7-Segment Display 14.2mm (0.56") - Digit Size

Download HS420561 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HS420561 model

Email notifications will be applied after download.

Send part feedback

Symbol

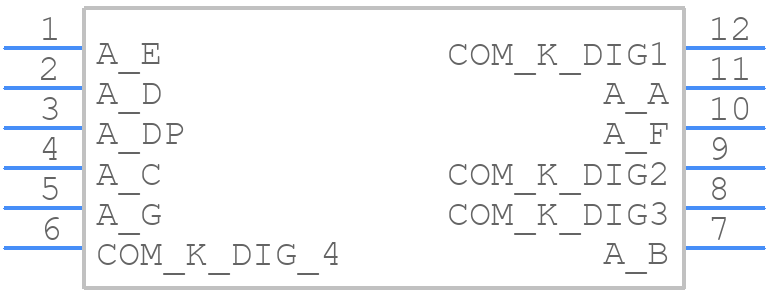

HS420561 - CDIL - PCB symbol

PCB Footprints

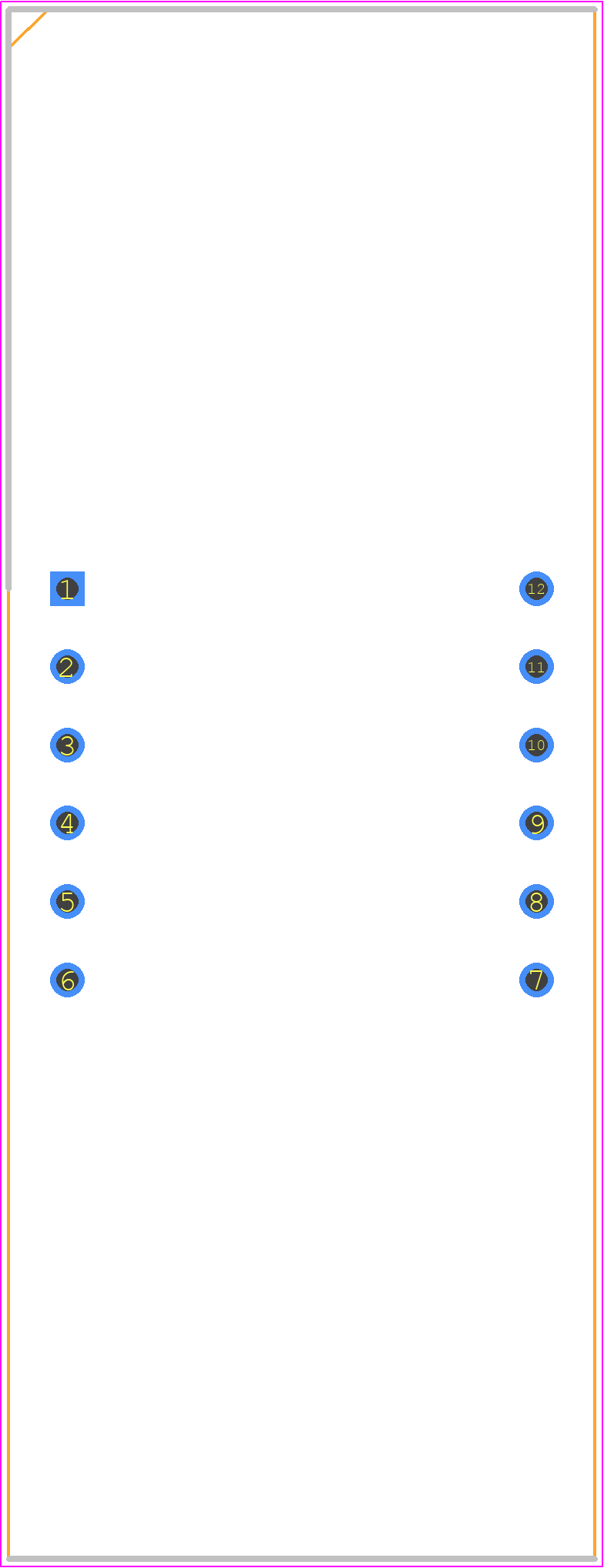

HS420561 - CDIL PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-12

Datasheet Download Datasheet
Stock & Prices Price & Stock for HS420561
Part Number HS420561
Manufacturer CDIL
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-12
Released Date Aug 17, 2024
Last Modified Date Aug 17, 2024 7:42 AM UTC
