HV7802MG-G - Microchip

Description: Microchip Technology HV7802MG-G, High Side Current Monitor 8-Pin, MSOP

Download HV7802MG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

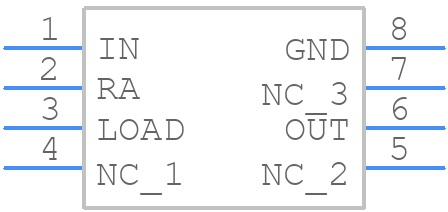

HV7802MG-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV7802MG-G - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - HV7802MG-G-1
click to zoom
3D Models
HV7802MG-G - Microchip - 3D model - Small Outline Packages - HV7802MG-G-1
click to zoom

HV7802MG-G Details

  • Manufacturer Part Number:

    HV7802MG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR|

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    450 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

HV7802MG-G Frequently Asked Questions (FAQs)

  • A good PCB layout for the HV7802MG-G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the high-voltage traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliable startup of the HV7802MG-G, make sure the input voltage is within the recommended range, the input capacitor is properly sized, and the device is properly bypassed. Also, ensure that the output voltage is not loaded during startup.
  • The maximum allowable ripple voltage on the input of the HV7802MG-G is 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability.
  • The HV7802MG-G is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output power and ensure proper thermal management in high-temperature environments.
  • To protect the HV7802MG-G from overvoltage and undervoltage conditions, use a voltage monitor or a supervisory circuit to detect and respond to out-of-range input voltages. Additionally, consider using a voltage regulator with built-in overvoltage protection.
