HVDA5415QDRQ1 - Texas Instruments

Description: Automotive Catalog 5-V CAN Transceiver

Download HVDA5415QDRQ1 Model

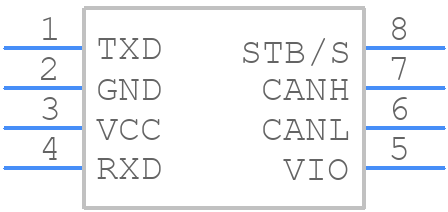

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HVDA5415QDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
HVDA5415QDRQ1 - Texas Instruments  - 3D model - Small Outline Packages - D
click to zoom

HVDA5415QDRQ1 Details

  • Manufacturer Part Number:

    HVDA5415QDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HVDA5415QDRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 1uF capacitor between AVCC and AGND.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency is within the recommended range. Also, use a pull-up resistor on the SCL/SDA lines and a pull-down resistor on the RST pin.
  • The maximum operating temperature range for HVDA5415QDRQ1 is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • Use an external power-on reset circuit to ensure a clean power-up sequence. For brown-out detection, use an external voltage supervisor or a power management IC to detect voltage drops and reset the device accordingly.
  • Use a 10uF capacitor between VCC and GND, and a 1uF capacitor between AVCC and AGND. Additionally, use a 0.1uF capacitor between each power pin and GND for high-frequency decoupling.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

HVDA5415QDRQ1 Overview

Use the download button to access the HVDA5415QDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HVDA5, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
