IAUT300N10S5N015 - Infineon

Description: INFINEON - IAUT300N10S5N015 - MOSFET, AEC-Q101, N-CH, 100V, HSOF

Download IAUT300N10S5N015 Model

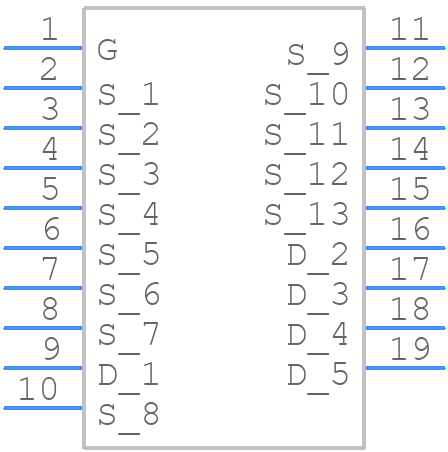

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

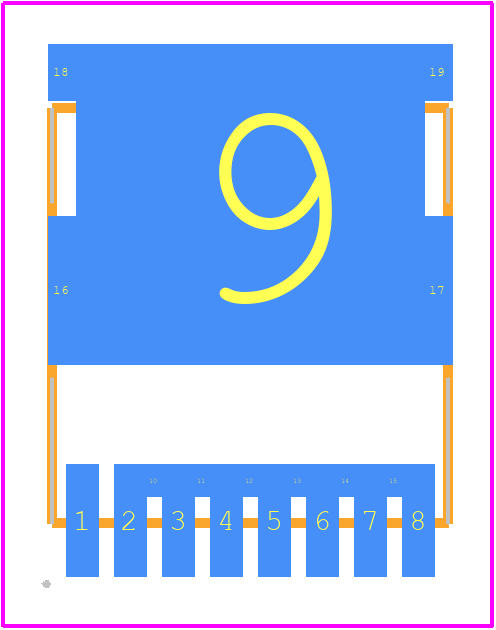

IAUT300N10S5N015 - Infineon PCB footprint - Other - Other - PG-HSOF-8-1-2020
click to zoom
3D Models
IAUT300N10S5N015 - Infineon  - 3D model - Other - PG-HSOF-8-1-2020
click to zoom

IAUT300N10S5N015 Details

  • Manufacturer Part Number:

    IAUT300N10S5N015

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-04-11

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    13

  • Avalanche Energy Rating (Eas):

    652 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    300 A

  • Drain-source On Resistance-Max:

    0.0015 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    126 pF

  • JESD-30 Code:

    R-PSSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    375 W

  • Pulsed Drain Current-Max (IDM):

    1200 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    118 ns

  • Turn-on Time-Max (ton):

    44 ns

IAUT300N10S5N015 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IAUT300N10S5N015 is -40°C to 150°C.
  • Proper thermal management can be achieved by using a heat sink with a thermal resistance of less than 1.5 K/W, and ensuring good thermal contact between the IGBT and heat sink.
  • The recommended gate resistor value for IAUT300N10S5N015 is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
  • Yes, IAUT300N10S5N015 can be used in a parallel configuration, but it's essential to ensure that the gate drive signals are properly synchronized and that the thermal management is adequate for the increased power dissipation.
  • The maximum allowable voltage transient for IAUT300N10S5N015 is 1200 V, with a maximum duration of 10 microseconds.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IAUT300N10S5N015 Overview

Use the download button to access the IAUT300N10S5N015 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IAUT3, or try a keyword search, such as Power Field-Effect Transistors
