IC-NQCTSSOP20 - ic-haus

Description: 13-Bit Sin/D Converter w/Calib

Download IC-NQCTSSOP20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

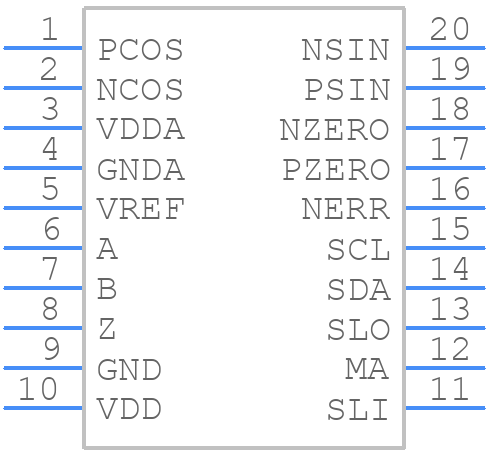

IC-NQCTSSOP20 - ic-haus - PCB symbol
click to zoom
PCB Footprints
IC-NQCTSSOP20 - ic-haus PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20 4.4 mm
click to zoom
3D Models
IC-NQCTSSOP20 - ic-haus - 3D model - Small Outline Packages - TSSOP20 4.4 mm
click to zoom

IC-NQCTSSOP20 Details

  • Manufacturer Part Number:

    IC-NQCTSSOP20

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    iC-Haus

  • Converter Type:

    A/D CONVERTER

  • JESD-30 Code:

    R-PDSO-G20

  • Number of Analog In Channels:

    1

  • Number of Bits:

    13

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Bit Code:

    BINARY, GRAY CODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

IC-NQCTSSOP20 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • Use a differential signal pair with a 100 ohm impedance and a common mode choke to minimize electromagnetic interference (EMI).
  • The IC-NQCTSSOP20 is rated for operation from -40°C to 125°C, but the maximum junction temperature should not exceed 150°C.
  • Power up the VCC supply before the VDD supply, and ensure that the VCC supply is stable before applying the VDD supply. A power-on reset circuit is recommended.
  • Use a 10uF ceramic capacitor with a 0.1uF ceramic capacitor in parallel, placed as close as possible to the power pins.
