ICE40LP1K-CM36A - Lattice Semiconductor

Description: iCE40 LP/HX/LM - Low-power, high-performance FPGA

Download ICE40LP1K-CM36A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

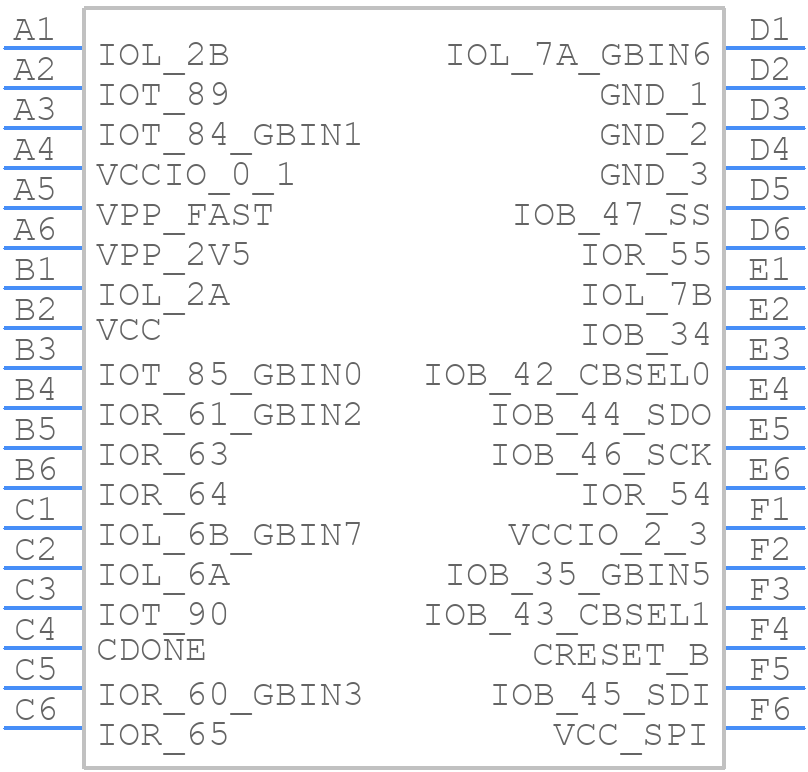

ICE40LP1K-CM36A - Lattice Semiconductor - PCB symbol
click to zoom
PCB Footprints
ICE40LP1K-CM36A - Lattice Semiconductor PCB footprint - BGA - BGA - 36-Ball ucBGA
click to zoom
3D Models
ICE40LP1K-CM36A - Lattice Semiconductor - 3D model - BGA - 36-Ball ucBGA
click to zoom

ICE40LP1K-CM36A Details

  • Manufacturer Part Number:

    ICE40LP1K-CM36A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    8

  • Clock Frequency-Max:

    179.21 MHz

  • Combinatorial Delay of a CLB-Max:

    9.36 ns

  • JESD-30 Code:

    S-PBGA-B36

  • Length:

    2.5 mm

  • Number of CLBs:

    160

  • Number of Inputs:

    25

  • Number of Logic Cells:

    1280

  • Number of Outputs:

    25

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    160 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    0.91 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.5 mm
