ICE40LP1K-CM49TR1K - Lattice Semiconductor

Description: FPGA iCE40 LP Family 1280 Cells 40nm Technology 1.2V 49-Pin UCBGA T/R

Download ICE40LP1K-CM49TR1K Model

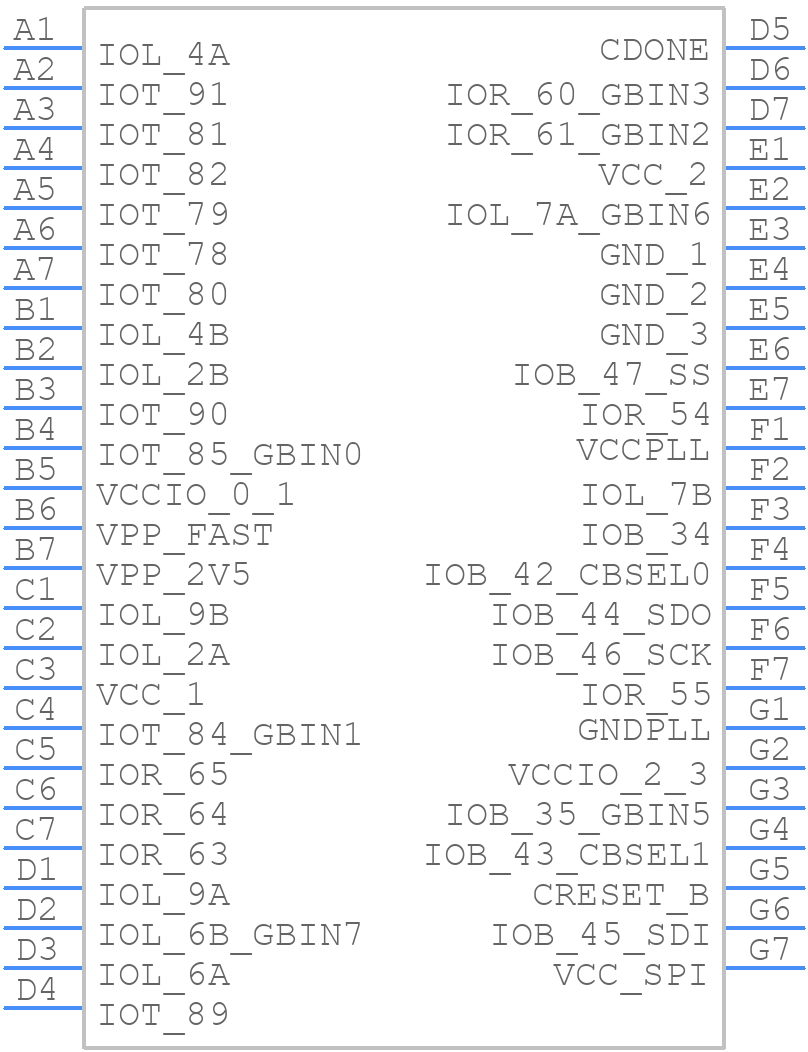

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE40LP1K-CM49TR1K - Lattice Semiconductor PCB footprint - BGA - BGA - 49-Pin UCBGA_2021
click to zoom
3D Models
ICE40LP1K-CM49TR1K - Lattice Semiconductor  - 3D model - BGA - 49-Pin UCBGA_2021
click to zoom

ICE40LP1K-CM49TR1K Details

  • Manufacturer Part Number:

    ICE40LP1K-CM49TR1K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B49

  • Length:

    3 mm

  • Number of CLBs:

    160

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    160 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

ICE40LP1K-CM49TR1K Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the ICE40LP1K-CM49TR1K is dependent on the specific design and implementation, but it can operate up to 200 MHz.
  • Lattice provides a Clock Domain Crossing (CDC) IP core that can be used to implement CDC in the ICE40LP1K-CM49TR1K. Additionally, designers can use synchronization registers, FIFOs, or other CDC techniques to ensure data integrity across clock domains.
  • The power consumption of the ICE40LP1K-CM49TR1K depends on the specific design, operating frequency, and voltage. However, the typical static power consumption is around 50-100 mW, and the dynamic power consumption can range from 100-500 mW depending on the design activity.
  • The ICE40LP1K-CM49TR1K is not specifically designed for radiation-hardened or high-reliability applications. However, Lattice provides other FPGA families, such as the ECP5, that are designed for high-reliability and radiation-hardened applications.
  • Lattice provides a range of security features, including bitstream encryption, secure boot, and secure key storage, to help protect designs on the ICE40LP1K-CM49TR1K. Designers can also use third-party IP cores and tools to enhance security.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICE40LP1K-CM49TR1K Overview

Use the download button to access the ICE40LP1K-CM49TR1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICE40, or try a keyword search, such as Field Programmable Gate Arrays

Parts related to ICE40LP1K-CM49TR1K

Showing 0 results

ICE40LP1K-CM49TR1K Alternates

Showing results

Image Part Number Model
Part Image ICE40LP1K-CM49TR Lattice Semiconductor Corporation

Field Programmable Gate Array, 160 CLBS, 1280-Cell, CMOS, PBGA49
