ICE5LP2K-SWG36ITR1K - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array iCE40 Ultra FPGA 2048 Logic Cells

Download ICE5LP2K-SWG36ITR1K Model

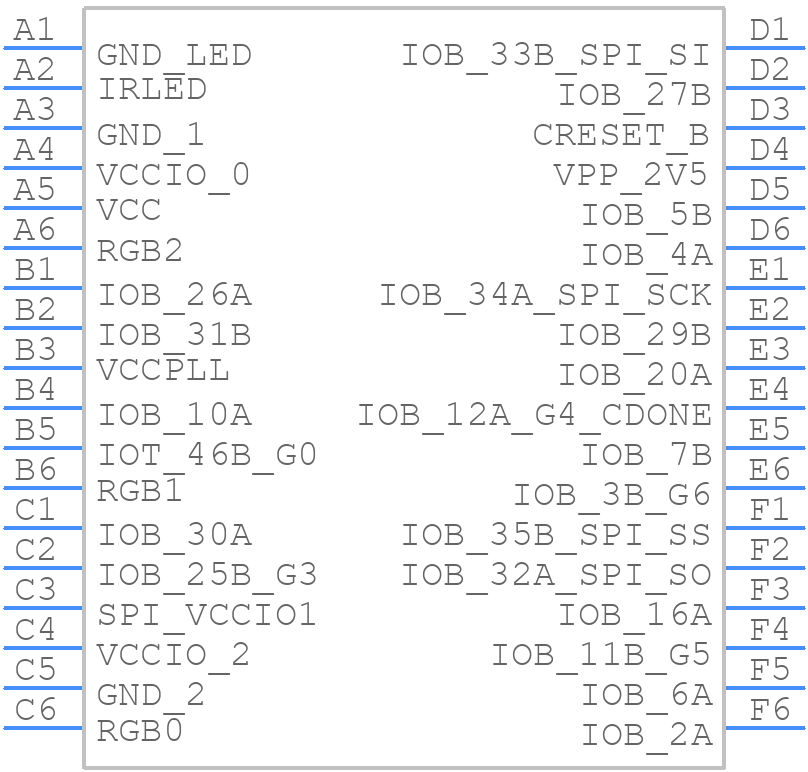

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE5LP2K-SWG36ITR1K - Lattice Semiconductor PCB footprint - BGA - BGA - 36-Ball WLCS Package Option 1: iCE40 Ultra
click to zoom
3D Models
ICE5LP2K-SWG36ITR1K - Lattice Semiconductor  - 3D model - BGA - 36-Ball WLCS Package Option 1: iCE40 Ultra
click to zoom

ICE5LP2K-SWG36ITR1K Details

  • Manufacturer Part Number:

    ICE5LP2K-SWG36ITR1K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    7.6

  • Combinatorial Delay of a CLB-Max:

    9 ns

  • JESD-30 Code:

    S-PBGA-B36

  • Length:

    2.078 mm

  • Moisture Sensitivity Level:

    1

  • Number of CLBs:

    256

  • Number of Inputs:

    26

  • Number of Logic Cells:

    2048

  • Number of Outputs:

    26

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,14

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    0.491 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.078 mm

ICE5LP2K-SWG36ITR1K Frequently Asked Questions (FAQs)

  • Lattice provides a PCB design guide and layout recommendations in their documentation, including the 'PCB Design Guide for Lattice FPGAs' and 'ICE5LP2K FPGA PCB Layout Guidelines'. Additionally, Lattice's iCEcube2 design software provides a built-in PCB router and signal integrity analysis tool to help optimize the PCB design.
  • Lattice recommends a power supply design that includes a 1.2V core voltage, 1.8V or 2.5V I/O voltage, and 3.3V auxiliary voltage. A decoupling capacitor network should be implemented to reduce noise and ensure signal integrity. Lattice provides a power supply design guide and recommends using a switching regulator or low-dropout regulator (LDO) to minimize power consumption.
  • The ICE5LP2K-SWG36ITR1K has a maximum junction temperature of 100°C. To prevent overheating, ensure good airflow around the device, use a heat sink or thermal interface material if necessary, and implement thermal monitoring and shutdown mechanisms in the design. Lattice provides thermal management guidelines and recommends using their iCEcube2 software to estimate power consumption and thermal performance.
  • Lattice provides a range of security features, including bitstream encryption, secure boot, and authentication mechanisms. Implementing these features requires careful planning and design, including generating and managing encryption keys, configuring the FPGA's security settings, and integrating with secure boot mechanisms. Lattice provides documentation and guidelines for securing the FPGA's configuration.
  • The ICE5LP2K-SWG36ITR1K is not specifically designed for radiation-hardened or high-reliability applications. However, Lattice provides guidance on using their FPGAs in such applications, including recommendations for radiation testing, single-event upset (SEU) mitigation, and fault tolerance. Engineers should carefully evaluate the FPGA's performance and reliability in the target application and consider using radiation-hardened or high-reliability FPGAs if necessary.
