ICL3207ECAZ-T - Renesas Electronics

Description: The ICL3207E is a 3V to 5. 5V powered RS-232 transmitter/receiver that meets EIA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. The ICL3207E features five transmitters and three receivers. It provides ±15kV ESD protection (IEC61000-4-2 Air Gap) and ±15kV Human Body Model protection on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are ISDN Terminal Adapters (TAs), PDAs, Palmtops, peripherals, and notebook and laptop computers where the low operational power consum

Download ICL3207ECAZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

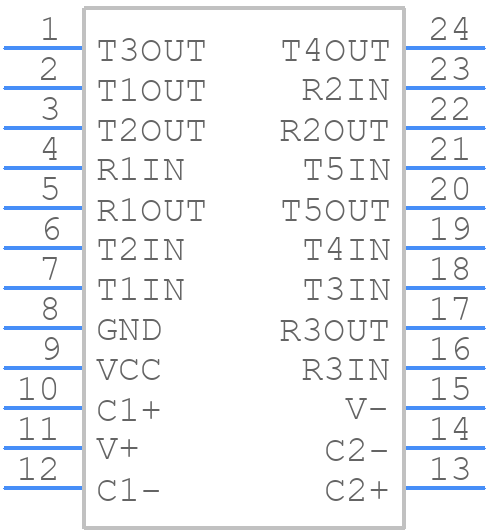

ICL3207ECAZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL3207ECAZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M24.209 (JEDEC MO-150-AG ISSUE B) 24 LEAD SHRINK SMALL OUTLINE PLASTIC PACKAGE
click to zoom
3D Models
ICL3207ECAZ-T - Renesas Electronics - 3D model - Small Outline Packages - M24.209 (JEDEC MO-150-AG ISSUE B) 24 LEAD SHRINK SMALL OUTLINE PLASTIC PACKAGE
click to zoom

ICL3207ECAZ-T Details

  • Manufacturer Part Number:

    ICL3207ECAZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    M24.209

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Differential Output:

    NO

  • Driver Number of Bits:

    5

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ICL3207ECAZ-T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the traces connected to the device.
  • The ICL3207ECAZ-T has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials.
  • The maximum operating temperature range for the ICL3207ECAZ-T is -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • The ICL3207ECAZ-T is a surface-mount device and can be susceptible to vibration-induced failures. To ensure reliable operation in high-vibration environments, it's recommended to use a robust PCB design, secure the device with a suitable adhesive, and consider using a vibration-dampening material.
  • To troubleshoot issues with the ICL3207ECAZ-T, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the device is properly soldered. Use an oscilloscope to check the device's output signals and verify that they meet the expected specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICL3207ECAZ-T Overview

Use the download button to access the ICL3207ECAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32, or try a keyword search, such as Line Driver or Receivers
