Description:The ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243 (ISL32xx) devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions (except for the ICL3232), reduce the standby supply curr
Renesas recommends following a star-grounding topology, keeping the analog and digital grounds separate, and using a solid ground plane to minimize EMI and noise. Additionally, keep the signal traces short and away from the power traces, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
To ensure reliable operation in high-temperature environments, Renesas recommends following proper thermal design guidelines, such as using a heat sink, keeping the device away from heat sources, and using a thermal interface material to improve heat dissipation. Additionally, derate the device's power consumption and operating frequency according to the datasheet's thermal derating curves.
Renesas recommends using termination resistors with a value of 1 kΩ to 10 kΩ for the ICL3222CAZ's RS-232 transceivers, depending on the specific application and cable length. The termination resistors help to reduce reflections and improve signal integrity.
Renesas recommends following a controlled power-up and power-down sequencing to avoid latch-up or damage. Specifically, power up the VCC supply before the VDD supply, and power down the VDD supply before the VCC supply. Additionally, ensure that the power supplies are ramped up and down slowly to avoid voltage spikes or transients.
Renesas recommends following proper ESD protection measures, such as using ESD-sensitive handling and storage procedures, using ESD-protective packaging and materials, and implementing ESD protection circuits or devices on the PCB. Additionally, ensure that the ICL3222CAZ is handled and stored in a static-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3222CAZ Overview

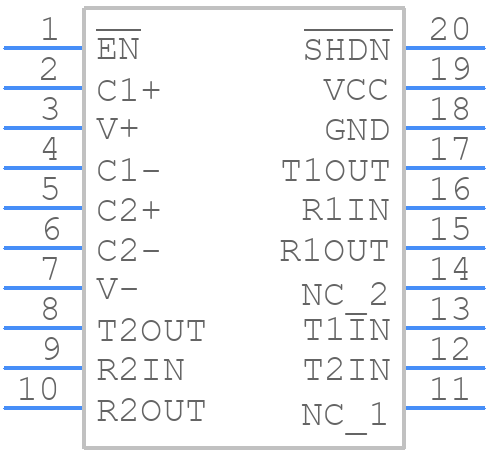

Use the download button to access the ICL3222CAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
