Description:The ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243 (ISL32xx) devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions (except for the ICL3232), reduce the standby supply curr
A good PCB layout for the ICL3222CBZ should minimize signal trace lengths, keep analog and digital signals separate, and use a solid ground plane to reduce noise and EMI. Additionally, it's recommended to place the device close to the signal source and use a low-ESR capacitor for power decoupling.
To ensure reliable operation of the ICL3222CBZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its recommended temperature range of -40°C to +85°C.
When selecting external components for the ICL3222CBZ, consider the operating frequency, signal amplitude, and impedance matching requirements. Choose components with low ESR, high Q, and suitable temperature ratings. Additionally, ensure that the components are compatible with the device's voltage and current ratings.
To troubleshoot common issues with the ICL3222CBZ, start by verifying the device's power supply and signal connections. Check for proper termination, impedance matching, and signal amplitude. Use an oscilloscope to visualize the signal and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
When using the ICL3222CBZ in a system with multiple power domains, ensure that the device is properly isolated from each power domain using suitable isolation techniques, such as optocouplers or transformers. Additionally, consider the power sequencing and voltage ramp-up requirements to prevent damage to the device or other system components.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3222CBZ Overview

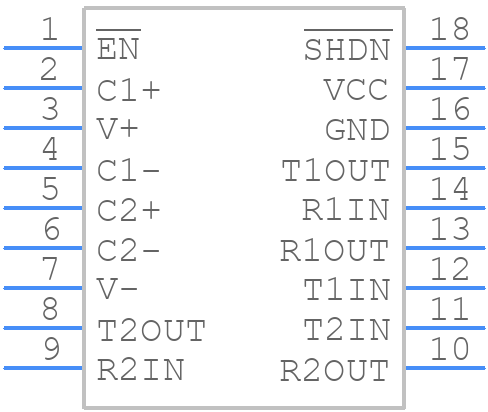

Use the download button to access the ICL3222CBZ schematic symbol, PCB footprint, and 3D model.
